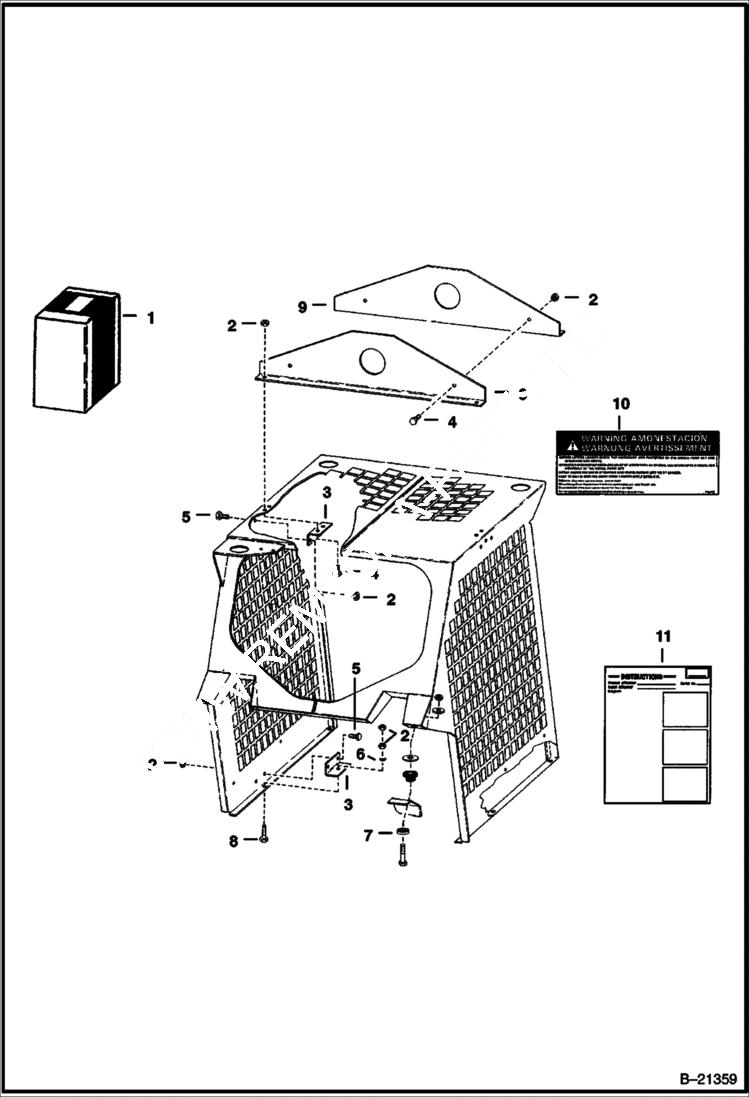

Запчасти Bobcat 500s SINGLE POINT LIFT ACCESSORIES & OPTIONS

1

KIT NLA - Order 6568281

2

61D8

NUT 5

3

6560174

ANGLE

4

17C820

BOLT

5

17C816

BOLT

6

773085

WASHER

7

6560900

RETAINER

8

17C836

BOLT

9

6560175

ANGLE

10

6565932

DECAL safety

11

INSTRUCTIONS NLA - Print Instructions from BASS - Was 6556604 - A
