Запчасти Bobcat 500s SEAT BAR KIT ACCESSORIES & OPTIONS

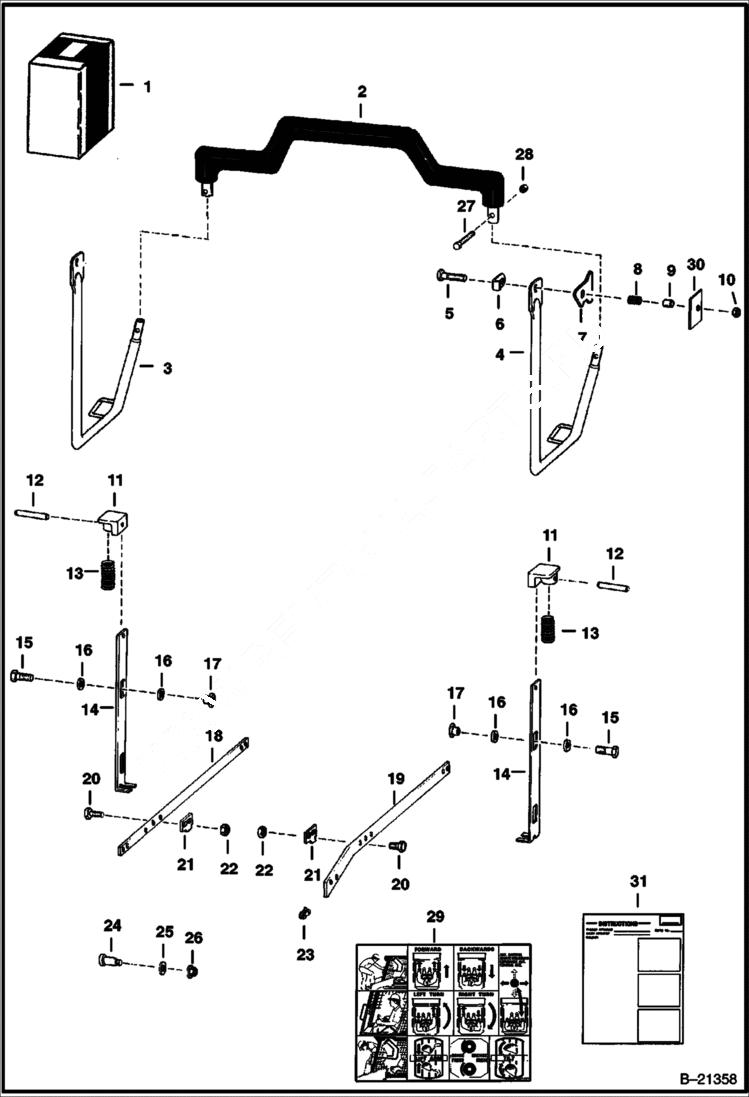

Схема запчастей Bobcat 500s - SEAT BAR KIT ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

6563500

KIT Ref. 2 - 31

2

6706324

SEAT BAR 1 Piece W/Ref. 3 & 4 - Was 6703301 - A

3

ARM NLA - Order Ref. 2 - Was 6563295 - A

4

ARM NLA - Order Ref. 2 - Was 6563296 - A

5

85D6

NUT, 5

6

6563557

WASHER angle

7

6563313

RETAINER

8

6704453

SPRING Was 6503387 - A

9

BUSHING NLA - Order 6564507 & 6564506

9

6564507

BUSHING

10

17C632

BOLT 5

11

6563148

BLOCK, SPRING

12

14J2512

PIN 5

13

6702430

SPRING, COMPRESSION Was 6563149 - A

14

6563150

LOCK

15

17C612

BOLT 5

16

6700170

WASHER Was 6563152 - A

17

6559479

NUT

18

6563147

BAR

19

6563569

BAR

20

17C614

BOLT

21

6563151

LINK

22

83D6

NUT 5

23

6558077

LINK

24

38C612

BOLT shoulder - Model 520 Only - Was 1320924B - A

25

25E17

WASHER 5 Model 520 Only

26

83D5

NUT 5 Model 520 Only

27

17C420

BOLT

28

85D4

NUT 5

29

6569021

DECAL - Was 6561381 - A

30

6564506

WASHER

31

6566083

INSTRUCTIONS

Выбрано товаров: 32
