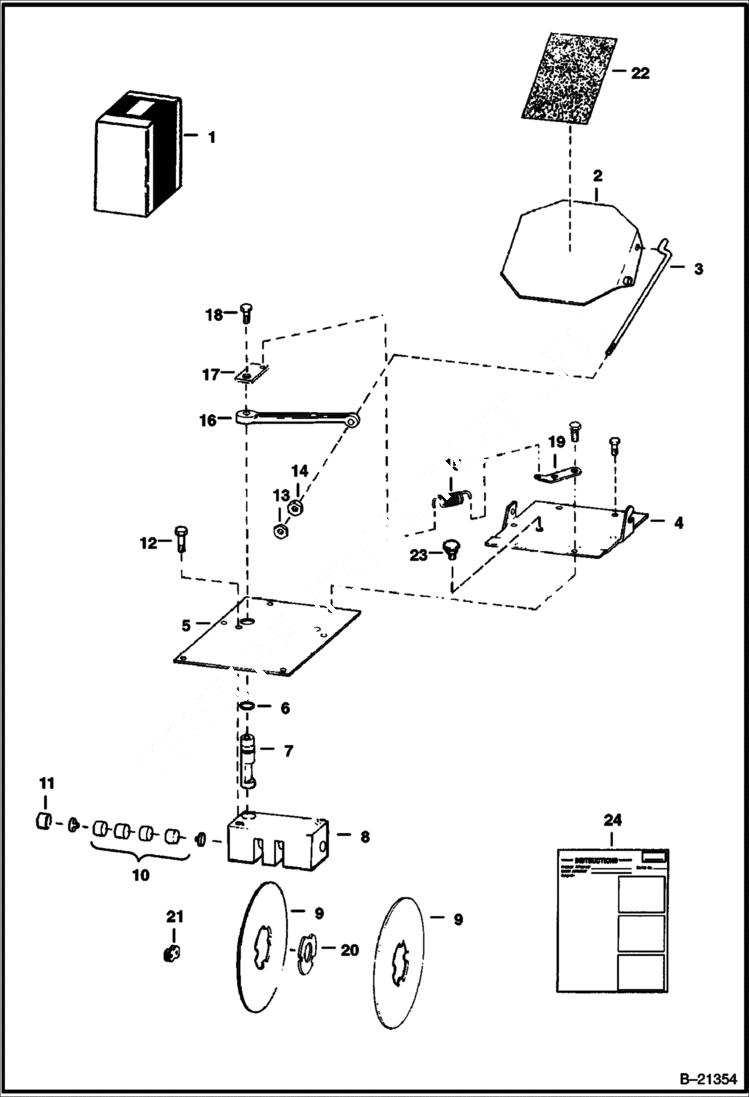

Запчасти Bobcat 500s DISC BRAKE S/N 13005 and Below ACCESSORIES & OPTIONS

1

KIT NLA - brake - Ref. 2-23 - Order Components

2

6559204

PEDAL

3

6554084

ROD

4

6575654

COVER Also Order Ref. 23 - Was 6554093 - A

5

6554088

COVER

6

25K20028

O RING 10

7

PIN NLA - Was 6559216 - A

8

6559800

BLOCK

9

6559206

DISC, BRAKE

10

6557747

PAD

11

6559323

SPACER

12

17C812

BOLT

13

85D8

NUT, 5

14

6564669

NUT, 10 Was 6519169 - A

15

SPRING NLA - Was 6559219 - A

16

6563823

LEVER Was 6557913 - A

17

6559217

BAR

18

17C816

BOLT

19

6559218

ANGLE

20

6557937

WASHER

21

6515191

LINK

22

6553976

SAFETY TREAD 127 x 203 mm (5 x 8'')

23

6632601

BREATHER

24

6556417

INSTRUCTIONS installation
