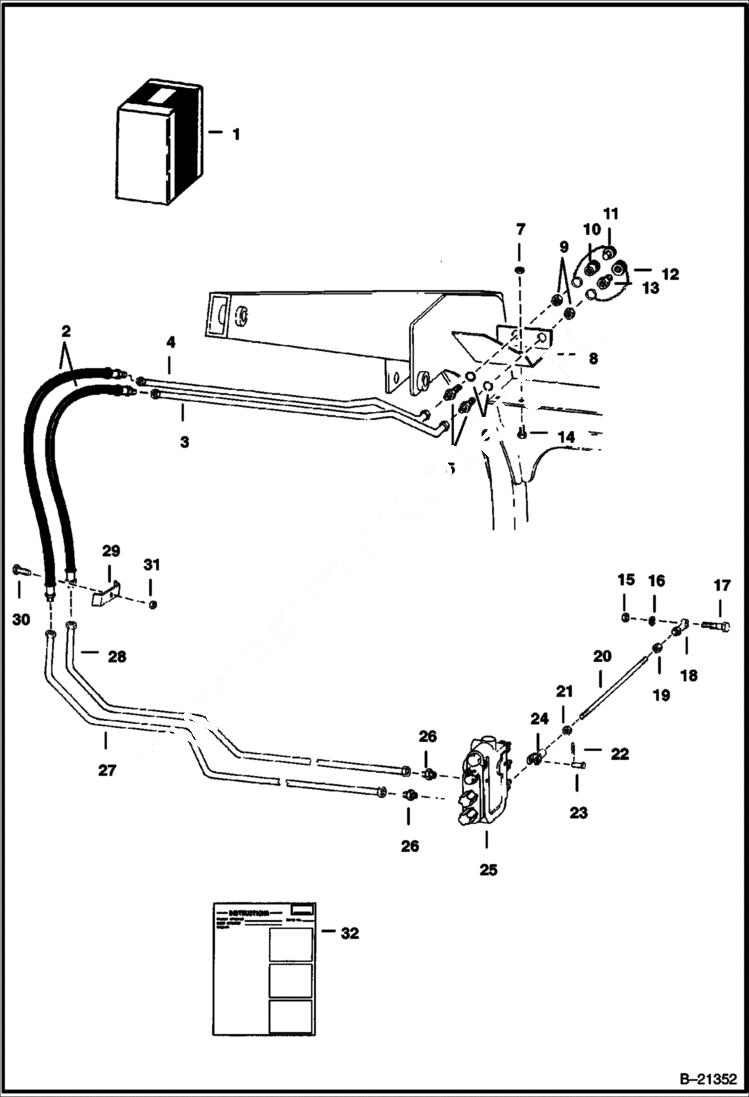

Запчасти Bobcat 500s AUXILIARY HYDRAULICS Front ACCESSORIES & OPTIONS

1

KIT NLA - aux. hydr. - Ref. 2-24 & 26 - 32 - Order components

2

6553454

HOSE

3

6554148

TUBE

4

6554147

TUBE

5

45K6

CONNECTR

6

79K8

O RING 10 Was 91F000006B - A

7

61D6

NUT 5

8

6554136

BRACKET

9

86F6

NUT

10

6512159

QUICK COUPLER Female

10

58K211

O RING 10

11

6515167

PLUG

12

6515168

CAP

13

6513634

QUICK COUPLER Male

14

17C612

BOLT 5

15

81D6

NUT

16

763403

WASHER

17

17C620

BOLT

18

6512955

SWIVEL L.H. threads

19

13D6

NUT

20

6553068

ROD

21

8D6

NUT 5

22

1306637

CLIP

23

6505103

PIN

24

6560526

CLEVIS

25

VALVE See Illustration HYDRAULIC VALVE/ B21339

26

15K6

ADAPTER

27

6557150

TUBE

28

6553458

TUBE

29

6502203

CLAMP tube

30

6514571

BOLT

31

81D6

NUT

32

INSTRUCTIONS NLA - Print Instructions from BASS - Was 6549883 - A
