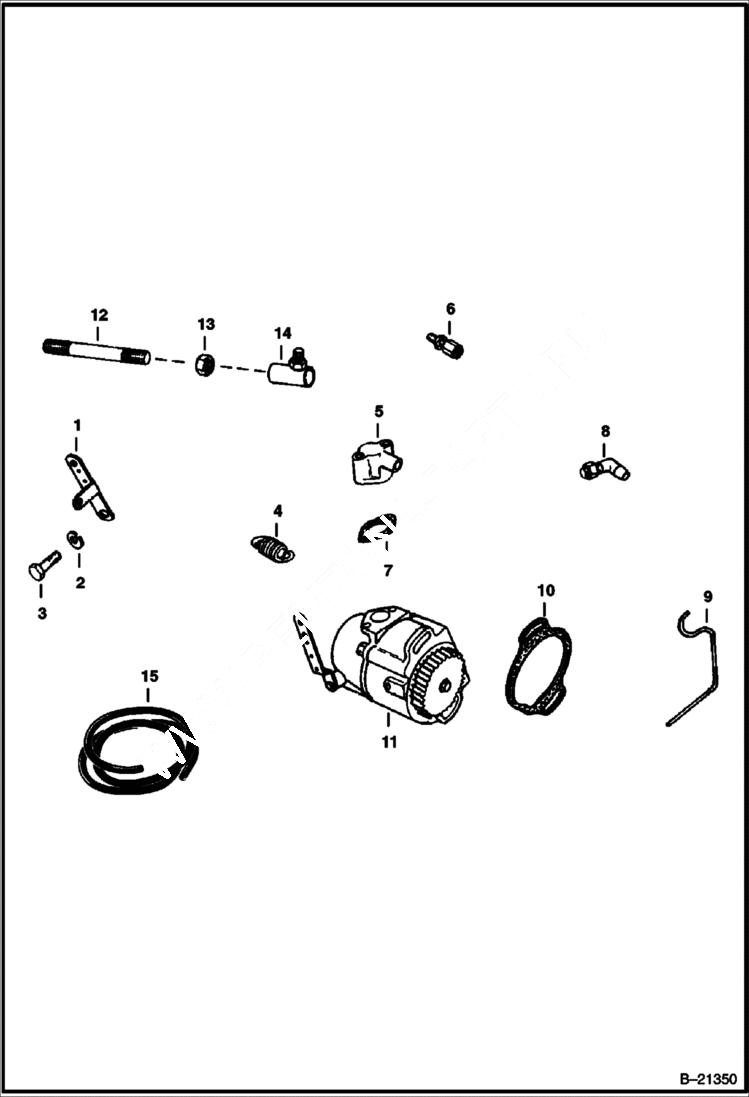

Запчасти Bobcat 500s GOVERNOR POWER UNIT

1

6512209

LEVER throttle

2

WASHER NLA - Was 6512266 - A

3

BOLT NLA - Shoulder - Was 6512264 - A

4

SPRING NLA - Was 6512206 - A

5

6512207

HOUSING breather - W/Breather

6

6517077

CONNECTOR

7

6512208

GASKET

8

ELBOW NLA - Was 6512243 - A

9

6512205

TUBE

10

6512204

GASKET

11

GOVERNOR NLA - Was 6512210 - A

12

1311214

ROD

13

14D10

NUT

14

6515194

BALL JOINT Was 1301359B - A

15

6512173

HOSE
