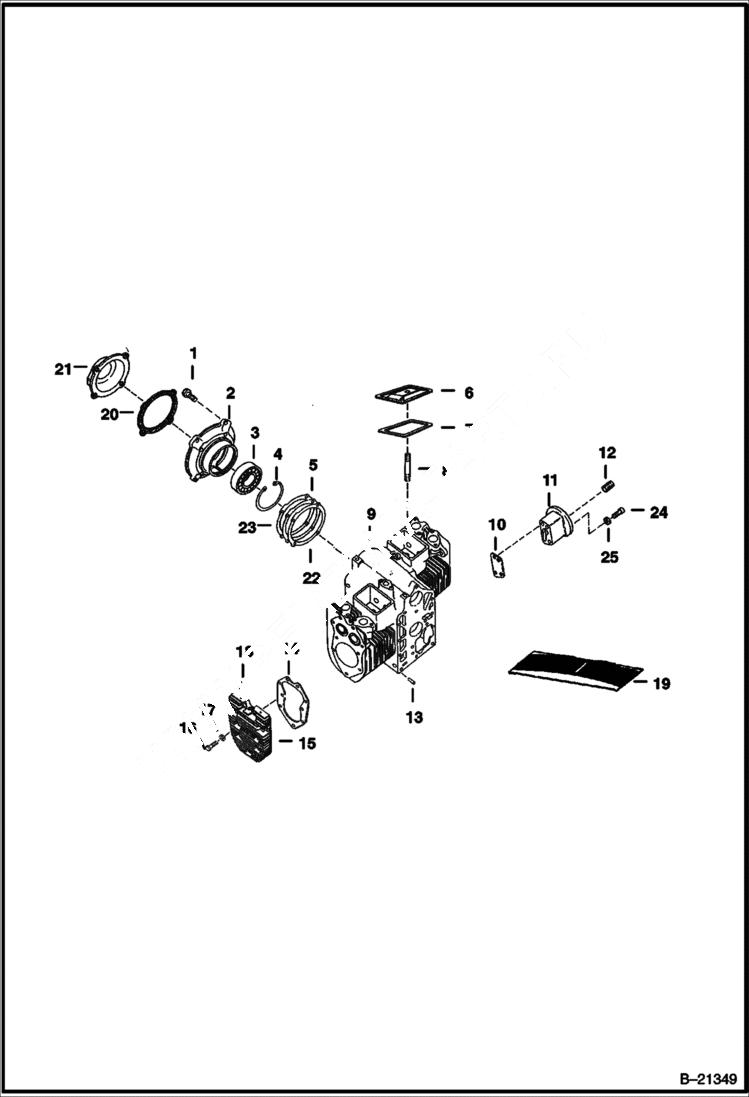

Запчасти Bobcat 500s CYLINDER BLOCK POWER UNIT

1

17C620

BOLT

2

6512182

PLATE enclosure

3

BEARING NLA - Was 6512237 - A

4

SNAP RING NLA - Was 6512238 - A

5

GASKET NLA - standard - Was 6512181 - A

6

6517221

VALVE COVER

7

6517222

GASKET valve cover

8

6512260

STUD

9

BLOCK NLA - W/Guides & Bushings - Was 6512315 - A

10

GASKET NLA - Was 6512223 - A

11

ADAPTER NLA - W/Ref. 12 - Was 6512320 - A

12

FILTER STUD NSS

13

6512241

PIN

14

6512189

GASKET cylinder head

15

6512188

HEAD cylinder

16

17C624

BOLT 5

17

214765

WASHER

18

6517466

ROLL PIN

19

6667812

KIT gasket - Overhaul - Was 6512224 - A

20

6512789

GASKET

21

ADAPTER NLA - Was 6512788 - A

22

6512878

GASKET .005'' (0,13mm) over size

23

GASKET NLA - .010'' (0,25mm) Oversize - A

24

BOLT NLA - hex socket head - 5/16'' - 18 x 2 1/4'' - source locally

25

25E15

WASHER
