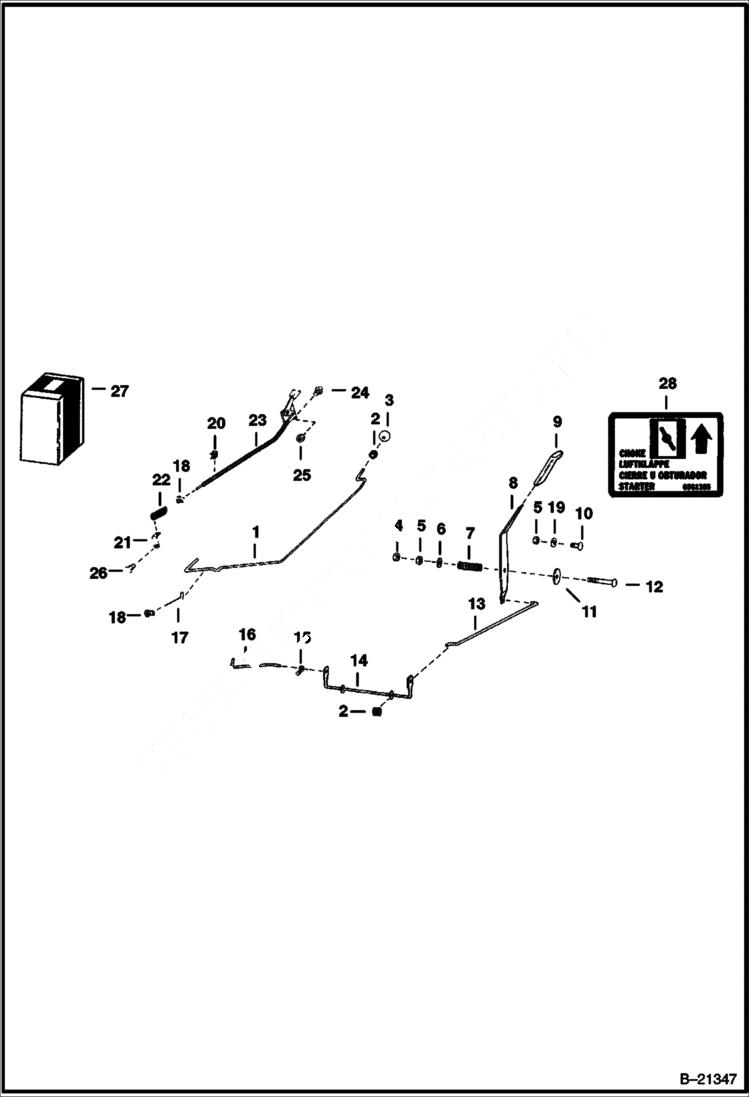

Запчасти Bobcat 500s THROTTLE & CHOKE POWER UNIT

1

6553556

ROD

2

6519484

GROMMET

3

6519552

KNOB

4

7D6

NUT

5

61D6

NUT 5

6

6505623

WASHER centering

7

6704453

SPRING Was 6503387 - A

8

6563940

LEVER

9

6553557

GRIP

10

37C616

BOLT Was 6514537 - A

11

6562127

WASHER

12

7C632

BOLT

13

6553559

ROD throttle

14

6553555

LINKAGE ROD linkage

14

6563096

LINKAGE ROD See Illustration SHROUDING/ B21348 Use W/Ref. 10

15

6519479

CLIP Was 6519478 - A

16

6553558

ROD

17

6553560

ROD

18

6518875

CLIP Was 6517077 - B

19

6512163

GASKET See Illustration MANIFOLD & CARBURETOR/ B21351 Use W/Ref. 10

19

25E21

WASHER 5

20

6514780

CLAMP

21

6560533

BRACKET

22

6560536

SPRING

23

6560601

CABLE

24

45G1008

BOLT

25

50D10

LOCKNUT

26

17C508

BOLT

27

6561996

KIT choke - Ref. 20 - 25

28

6561385

DECAL
