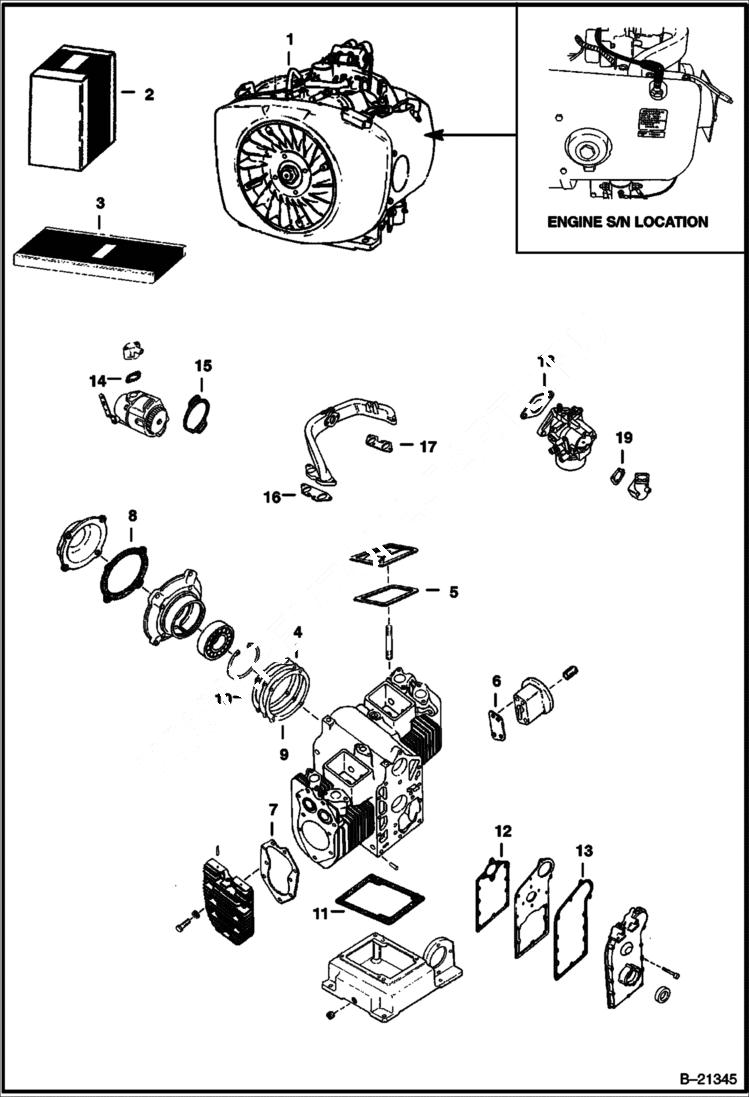

Запчасти Bobcat 500s ENGINE POWER UNIT

1

ENGINE NLA - Order 6561723 & Ref. 3

1

NLA - W/starter & carburator - Order 6561723REM engine - Was 6561723 - A

1

6561723REM

ENGINE Remanufactured

1

SHORT BLOCK NLA - W/Crankshaft, camshaft, camshaft gear pistons, connecting rods, oil pump, valves, main bearings & gasket kit - Was 6513428 - A

2

6667812

KIT gasket - Overhaul - W/Ref. 4 - 19 - Was 6512224 - A

3

6561996

KIT See Illustration THROTTLE & CHOKE/ B21347 CHOKE

4

GASKET See Illustration CYLINDER BLOCK/ B21349 NLA - Ref. 5 - Was 6512181 - A

5

6517222

GASKET See Illustration CYLINDER BLOCK/ B21349 Ref. 7

6

GASKET See Illustration CYLINDER BLOCK/ B21349 NLA - Was 6512223 - A

7

6512189

GASKET See Illustration CYLINDER BLOCK/ B21349 Ref. 14

8

6512789

GASKET See Illustration CYLINDER BLOCK/ B21349 Ref. 20

9

6512878

GASKET See Illustration CYLINDER BLOCK/ B21349 Ref. 22

10

GASKET See Illustration CYLINDER BLOCK/ B21349 NLA - Ref. 23 - Was 6512879 - A

11

6512213

GASKET See Illustration OIL PAN/ C2014 Ref. 3

12

GASKET See Illustration OIL PAN/ C2014 NLA - Cover - Ref. 11 - Was 6512221 - A

13

6512219

GASKET See Illustration OIL PAN/ C2014 Ref. 13

14

6512208

GASKET See Illustration GOVERNOR/ B21350 Ref. 7

15

6512204

GASKET See Illustration GOVERNOR/ B21350 Ref. 10

16

GASKET See Illustration MANIFOLD & CARBURETOR/ B21351 NLA - Ref. 2 - Was 6512198 - A

17

GASKET See Illustration MANIFOLD & CARBURETOR/ B21351 NLA - Ref. 30*- Was 6512199 - A

18

6518866

GASKET See Illustration MANIFOLD & CARBURETOR/ B21351 Ref. 8
