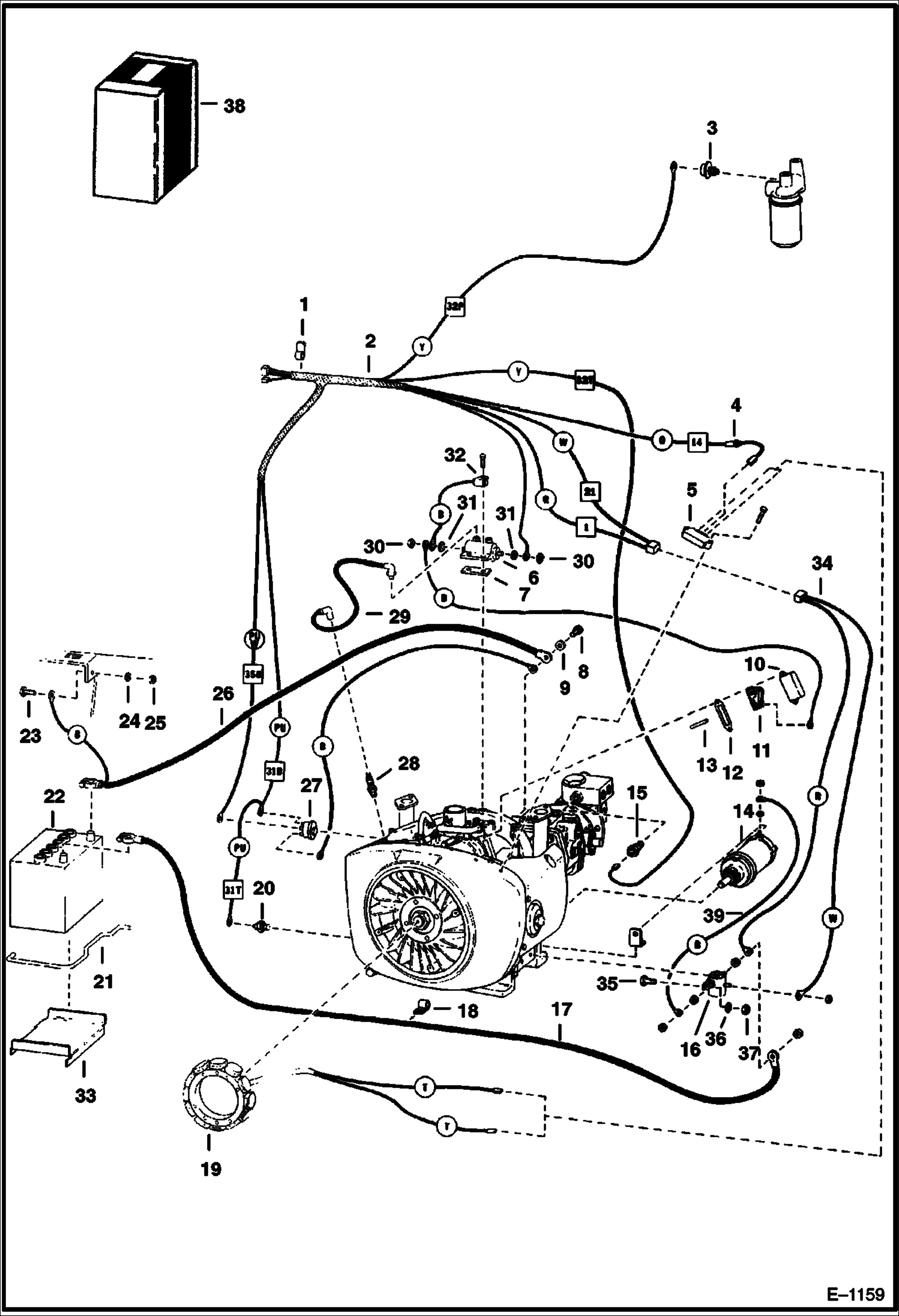

Запчасти Bobcat 500s ENGINE ELECTRICAL SYSTEM ELECTRICAL SYSTEM

1

CLAMP NLA - Was 6512154 - A

2

6554498

HARNESS engine wiring

3

6519334

SWITCH hydraulic pressure

4

608869

FUSE Was 6515208 - A

4

HOLDER NLA - W/40 amp. fuse - Was 733642 - A

5

6513972

RECTIFIER See Illustration STATOR/ B13881 REGULATOR

6

6512212

COIL

7

6517345

PLATE coil mounting

8

17C620

BOLT

9

6E7

WASHER

10

6518879

COVER breaker

11

6518868

BREAKER points

12

6518867

GASKET

13

6512240

PUSH ROD

14

6512287

STARTER See Illustration STARTER/ C2039

15

SWITCH NLA - hydro temp - Was 6512068 - A

16

6631939

SOLENOID

17

6553748

CABLE battery

18

30H62

CLIP

19

6518264

STATOR See Illustration STATOR/ B13881

20

6557838

SWITCH eng. oil temp. - Was 6512139 - A

21

6553338

BRACKET battery holddown

22

6674687

BATTERY, DRY 600 AMP Was 6669318 - A

22

6630154

CAP gang - Danger

22

6630155

CAP gang - Poison

22

6514898

CAP tilt-tite

23

17C512

BOLT 5

24

6E5

WASHER

25

91D5

NUT 5 Was 81D-5 - A

26

6553747

CABLE battery

27

6515472

SWITCH engine oil

28

6660301

SPARK PLUG spark - Resistor Type - Was 6512814 - A

29

6513589

WIRE spark plug

30

14D10

NUT

31

12E10

WASHER

32

6518873

CONDENSER

33

BATTERY NLA - Was 6557794 - A

34

6558101

HARNESS

35

17C412

BOLT 5

36

25E13

WASHER 5

37

6511319

NUT

38

6558831

KIT ignition - Ref. 11 - 13, 28, 29 & 32

39

WIRE Purchase Locally
