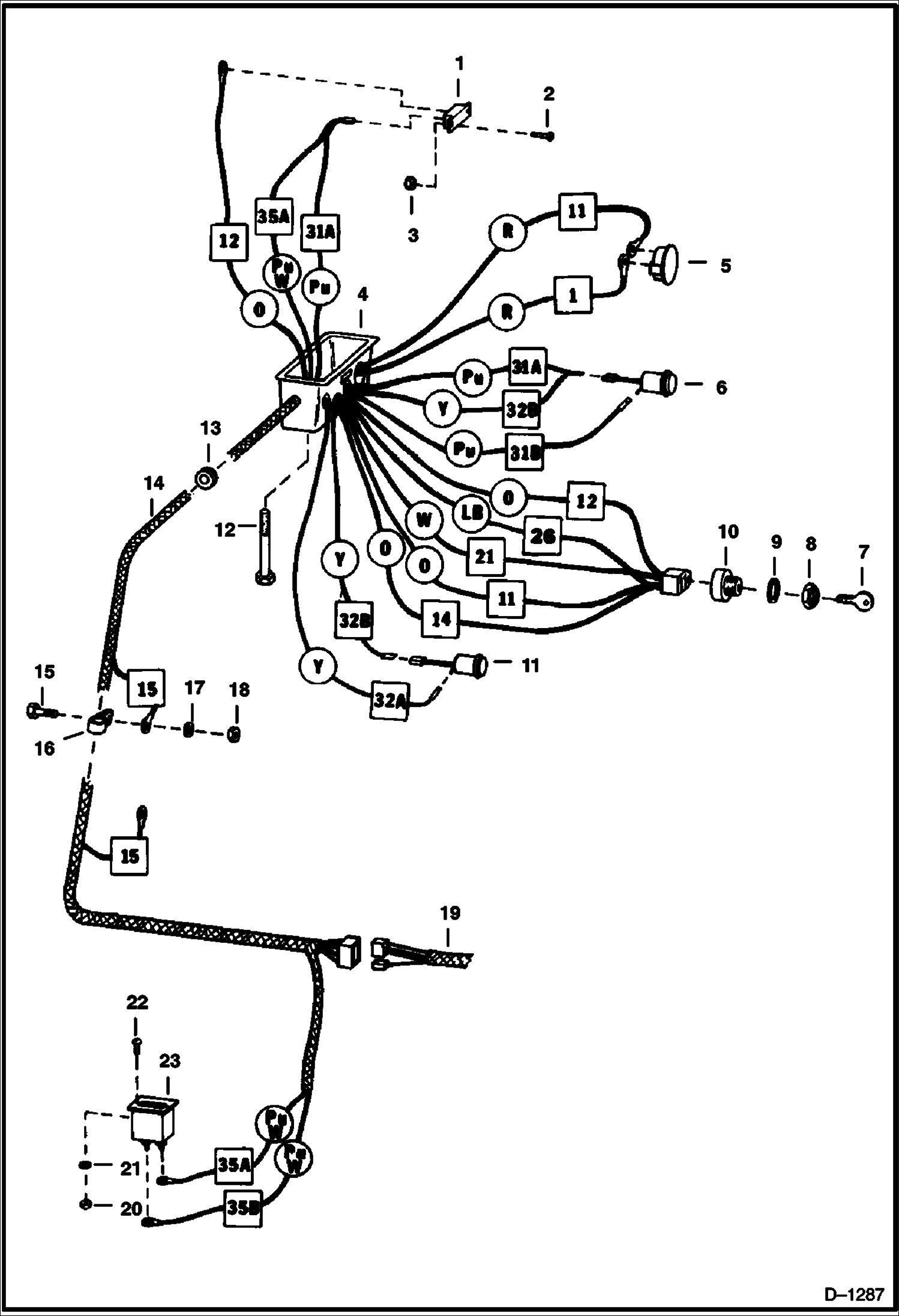

Запчасти Bobcat 500s CAB ELECTRICAL SYSTEM ELECTRICAL SYSTEM

1

6512153

CIRCUIT BREAKER circuit

2

85G1008

SCREW

3

12D10

NUT

4

6553654

COVER

5

6512807

GAUGE amp - Was 6515558 - A

6

6512343

LIGHT engine oil

7

6505412

KEY ignition

8

6502904

NUT

9

6E9

LOCKWASHE

10

6519070

SWITCH ignition

11

LIGHT NLA - transmission - Was 6515525 - A

12

BOLT NLA - Order 17C000552B & 25E000015B - Was 6505059 - A

13

6553651

GROMMET

14

HARNESS NLA - instrument - Was 6555473 - A

15

10C512

BOLT Was 6553808 - A

16

30H41

CLIP

17

6E5

WASHER

18

91D5

NUT 5 Was 81D-5 - A

19

6554498

HARNESS See Illustration ENGINE ELECTRICAL SYSTEM/ E1159 ENG.

20

12D6

NUT 10

21

12E6

WASHER

22

85G608

SCREW

23

6664886

HOURMETER Was 6631657 - A
