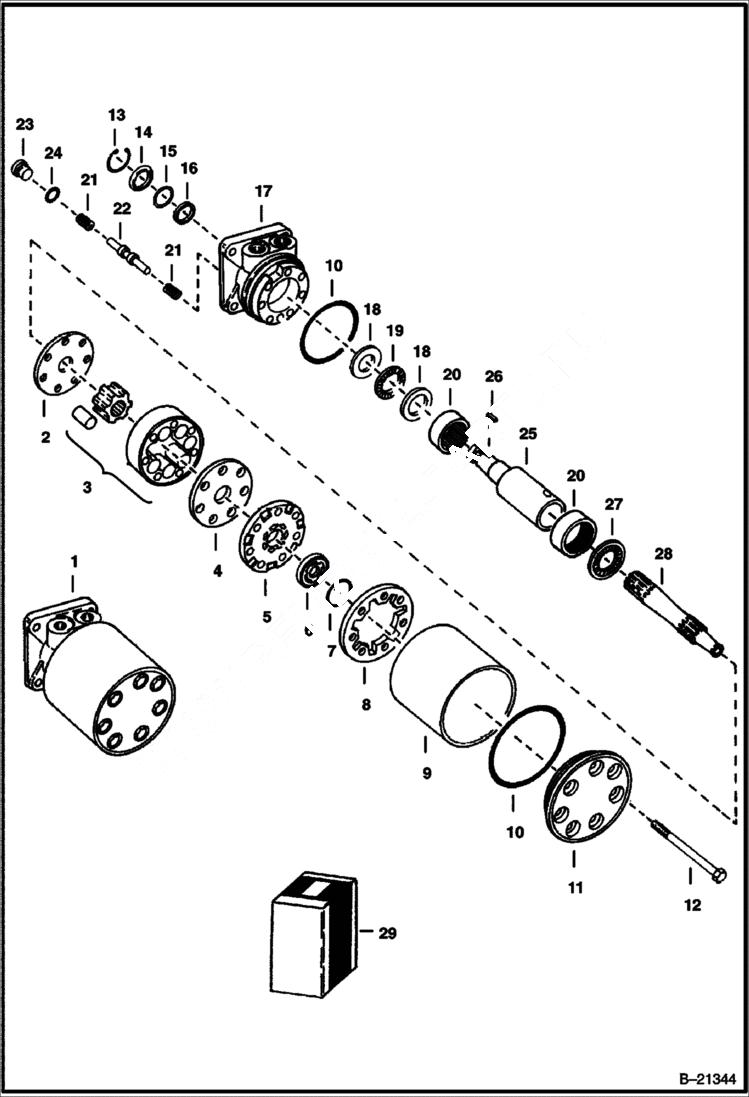

Запчасти Bobcat 500s HYDROSTATIC MOTOR MAE 24032 and MAE 24033 - S/N 13001 and Above HYDROSTATIC SYSTEM

1

MOTOR See BTI287 NLA - hydrostatic - MAE 24032

1

MOTOR See BTI287 NLA - MAE 24033 - Was 6562006 - A

2

6512296

PLATE

3

ROTOR NLA - Was 6512297 - A

4

PLATE NLA - Was 6512298 - A

5

6512299

MANIFOLD

6

COMMUTATOR NSS

7

RING NSS

8

COMMUTATOR NLA - W/Ref. 6 - Was 6512300 - A

9

SLEEVE NLA - Was 6512306 - A

10

SEAL NSS

11

6512302

COVER

12

BOLT NLA - Was 994202 - A

13

SNAP RING NSS

14

WASHER NSS - back-up

15

WASHER NSS - back-up

16

SEAL NSS

17

HOUSING See BTI287 NLA - W/Ref. 18-20 - Was 6598050 - A

18

WASHER NSS

19

BEARING NSS

20

BEARING NSS - needle

21

SPRING NLA - Was 6513544 - A

22

6513543

VALVE spool - Closed Center

22

VALVE NLA - spool - Open Center - Was 6514738 - A

23

47K3

PLUG W/Ref. 25

24

6514064

O-RING

25

SHAFT See BTI287 NLA - For 24032 Only

25

SHAFT NLA - For MAE 24033 Only - Was 6598049 - A

26

6514053

KEY square

26

6J1008

KEY woodruff

27

6514056

BEARING thrust

28

LINK NLA - drive - Was 6512294 - A

29

6514896

SEAL KIT Ref. 7, 10 & 13 - 16

29

KIT See BTI287 NLA - Ref. 7, 10 & 14 - 27 - Was 6562047 - A

29

KIT See BTI287 NLA - Ref. 1 & 23 - Was 6561521 - A
