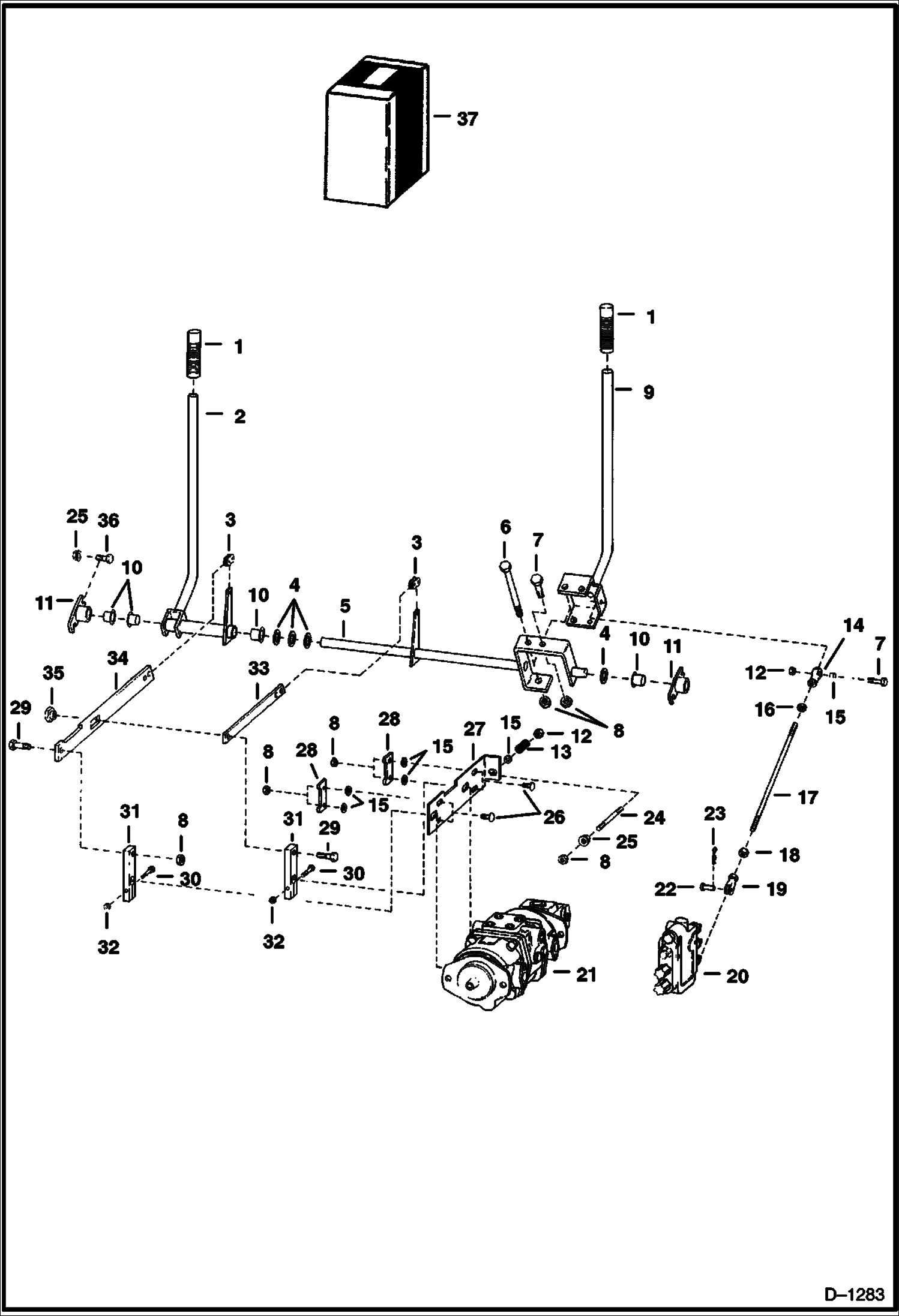

Запчасти Bobcat 500s HAND CONTROLS HYDROSTATIC SYSTEM

1

6513963

GRIP

2

6553062

HANDLE L.H.

3

6515186

CONNECTOR

4

25E29

WSHR

5

6553070

SHAFT

6

6553081

BOLT

7

17C620

BOLT

8

61D6

NUT 5

9

6553067

HANDLE R.H.

10

6512027

BUSHING

11

6552536

PIVOT

12

81D6

NUT

13

6505082

SPRING

14

6512955

SWIVEL L.H. threads

15

763403

WASHER

16

13D6

NUT

17

6553068

ROD

18

8D6

NUT 5

19

6560526

CLEVIS

20

VALVE See Illustration HYDRAULIC VALVE/ B21339

21

PUMP See Illustration HYDROSTATIC PUMP/ B21342

22

6505103

PIN

23

1306637

CLIP

24

6553077

ROD

25

6512893

NUT flanged

26

37C616

BOLT Was 6514537 - A

27

BRACKET NLA - Was 6557746 - A

28

BAR NLA - adjustment - Was 6558471 - A

29

6553082

BOLT

30

17C528

BOLT

31

LEVER NLA - Was 6557982 - A

32

91D5

NUT 5 Lock - Was 81D-5 - A

33

6553080

BAR

34

6553079

BAR

35

NUT NLA - Was 6553083 - A

36

17C616

BOLT 5

37

6560112

KIT To change to new style hand controls
