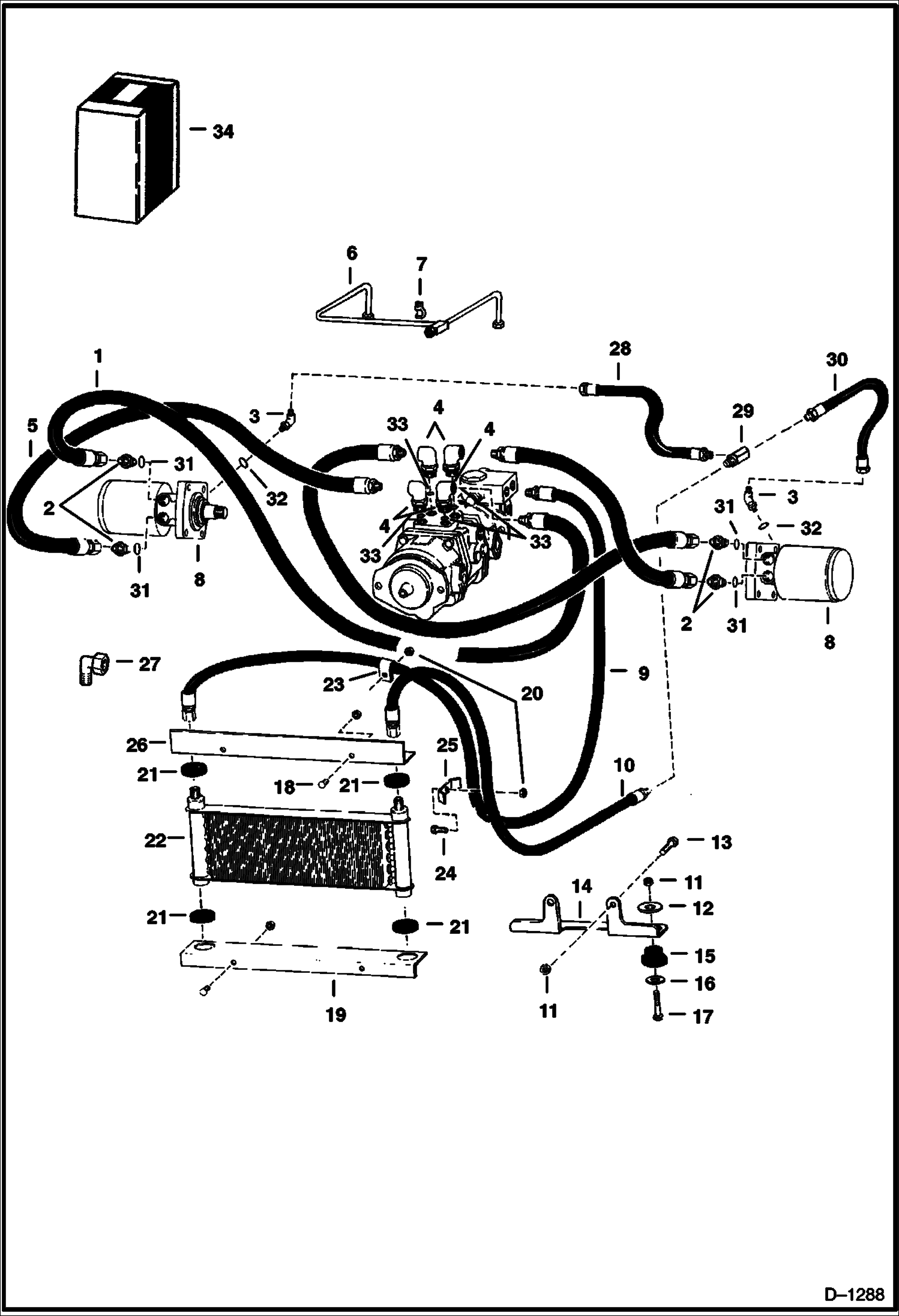

Запчасти Bobcat 500s HYDROSTATIC MOTOR CIRCUITRY HYDROSTATIC SYSTEM

1

6557647

HOSE

2

730963

CONNECTR W/Ref. 31

3

17K5

ELBOW W/Ref. 32

4

6553390

ELBOW W/Ref. 33

5

6557646

HOSE

6

6557148

TUBE

7

CLAMP NLA - Was 5H000004B - A

8

MOTOR See Illustration HYDROSTATIC MOTOR/ B21344 See Illustration HYDROSTATIC MOTOR/ B21343

9

6553857

HOSE

10

6554256

HOSE

11

81D8

NUT

12

6515817

WASHER

13

17C820

BOLT

14

6557147

BRACKET

15

6560633

DAMPENER Was 327010 - A

16

6543321

WASHER

17

BOLT NLA - Was 6553339 - A

18

37C616

BOLT Was 6514537 - A

19

6553432

BRACKET

20

81D6

NUT

21

6511983

GROMMET

22

OIL COOLER NLA - Was 6557282 - A

23

CLAMP NLA - Was 6H000041B - A

24

17C624

BOLT 5

25

6502203

CLAMP

26

6553431

BRACKET

27

11K7

ADAPTER

28

6558958

HOSE Replaces Ref. 6

29

ADAPTER NLA - replaces Ref. 6 - Was 6559340 - A

30

6558959

HOSE Replaces Ref. 6

31

79K10

O RING 10 Was 91F-7 - A

32

79K6

O RING 10 Was 91F-5 - A

33

79K12

O RING 10 Was 91F-8 - A

34

INSTRUCTIONS See Illustration CLOSED CENTER KIT/ C3054 NLA - Print Instructions from BASS - Was 6570392 - A
