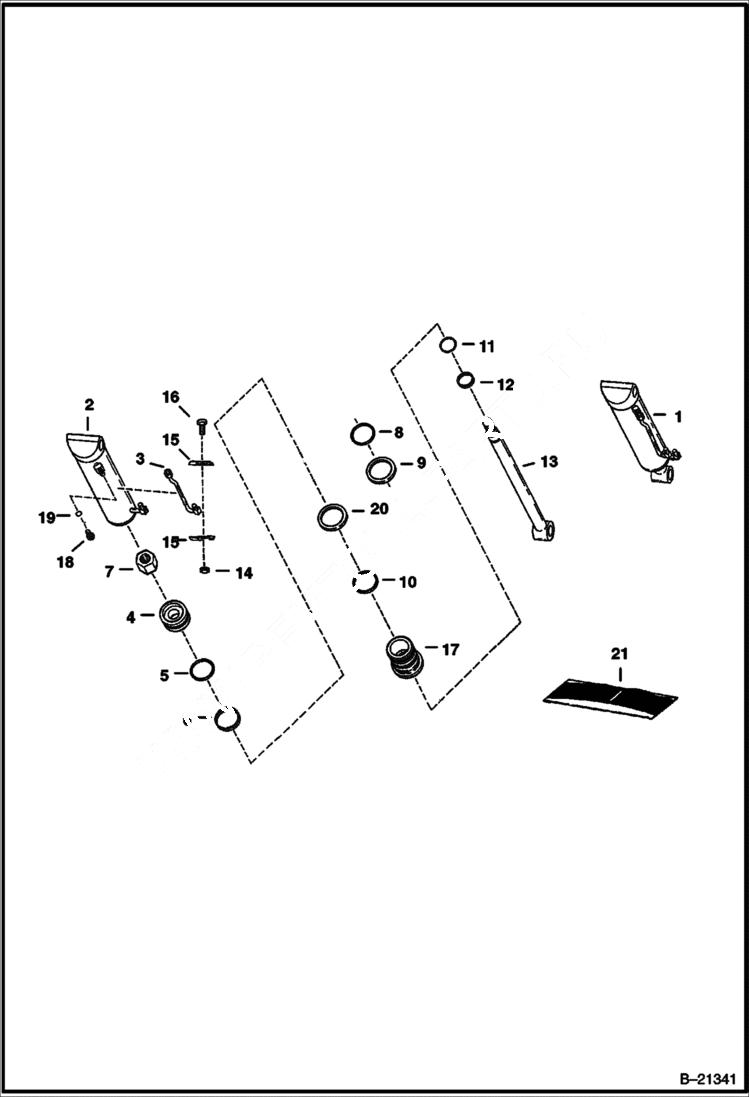

Запчасти Bobcat 500s TILT CYLINDER W/Replaceable Tube HYDRAULIC SYSTEM

1

6589331

CYLINDER, TILT tilt - Ref. 2 - 16

2

CASE NLA - Order 6589331 - Was 6589332 - A

3

6593392

TUBE

4

6803870

PISTON Was 6553912 - A

5

947088

RING, BACK-UP

6

25K30218

O RING 10

7

6803253

NUT Was 92D-18 - B

8

58K232

O RING 10

9

73K232

RING, BACK-UP back-up - Was 80K232 - A

10

58K234

O RING 10 Was 54K40300 - B

11

6538141

SEAL

12

6690707

WIPER, ROD CYL Was 6665086 - A

13

6592897

ROD Was 6582897 - B,D

14

95D6

NUT Was 91D-6 - A

15

6502426

CLAMP

16

17C624

BOLT 5 Was 17C-620 - B

17

6538367

HEAD, CYL TILT

18

47K5

PLUG

19

79K6

O RING 10

20

7008355

SEAL, QUAD

21

6589798

SEAL KIT Ref. 5-12 - Was 6587989 - A
