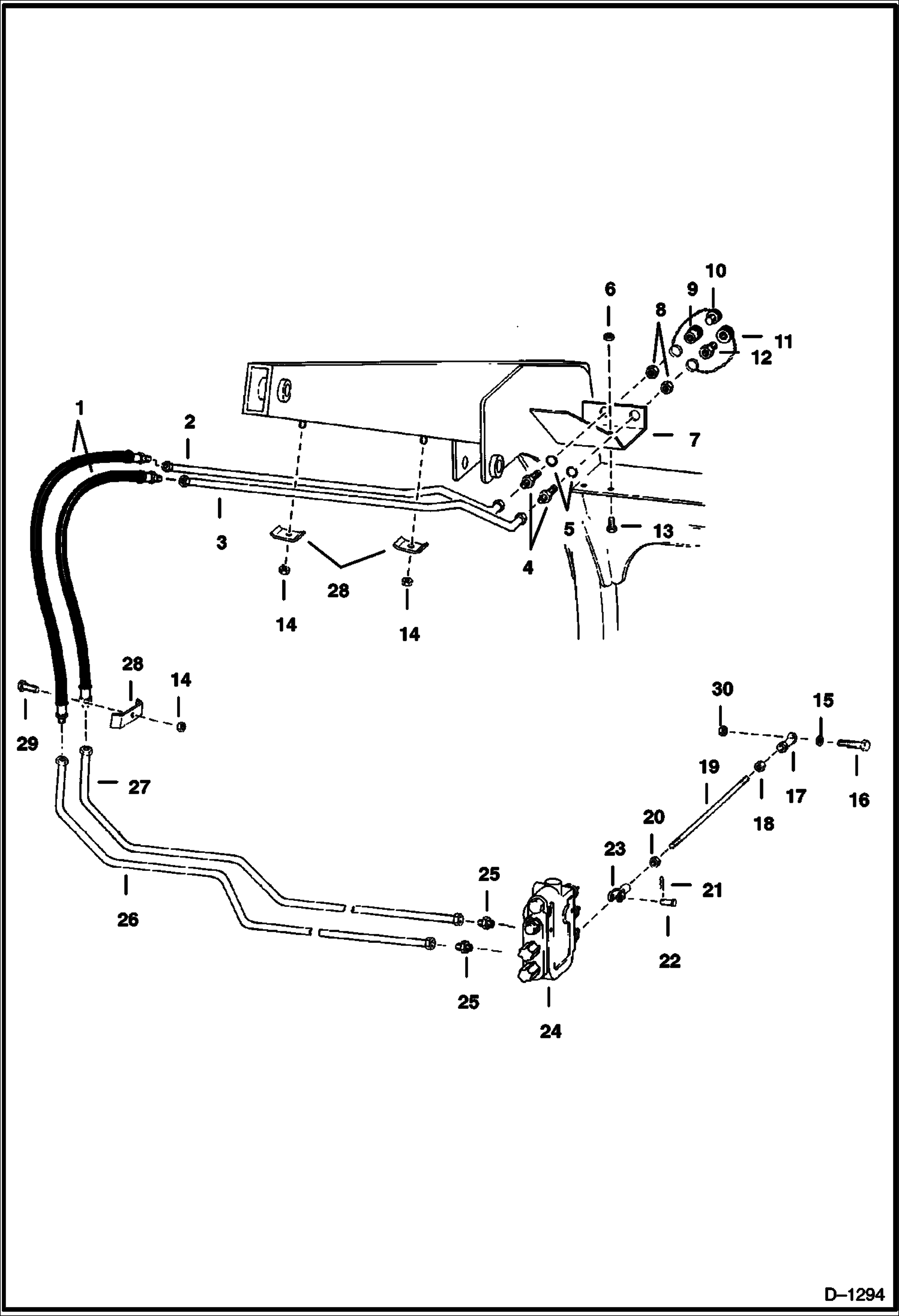

Запчасти Bobcat 500s AUXILIARY HYDRAULICS HYDRAULIC SYSTEM

1

6553454

HOSE

2

6554148

TUBE

3

6554147

TUBE

4

45K6

CONNECTR

5

79K8

O RING 10 Was 91F000006B - A

6

61D6

NUT 5

7

6554136

BRACKET

8

86F6

NUT

9

6512159

QUICK COUPLER See BTI302 Female

9

58K211

O RING 10

10

6515167

PLUG

11

6515168

CAP

12

6513634

QUICK COUPLER See BTI302 Male

13

17C612

BOLT 5

14

81D6

NUT

15

6557831

WASHER

16

17C620

BOLT

17

6512955

SWIVEL L.H. threads

18

13D6

NUT

19

6567057

ROD

20

8D6

NUT 5

21

6513495

COTTER PIN

22

6559014

CLEVIS PIN

23

6560526

CLEVIS

24

VALVE See Illustration HYDRAULIC VALVE/ B21339 HYDRAULIC

25

15K6

ADAPTER

26

6557150

TUBE

27

6553458

TUBE

28

6502203

CLAMP

29

6514571

BOLT

30

85D6

NUT, 5
