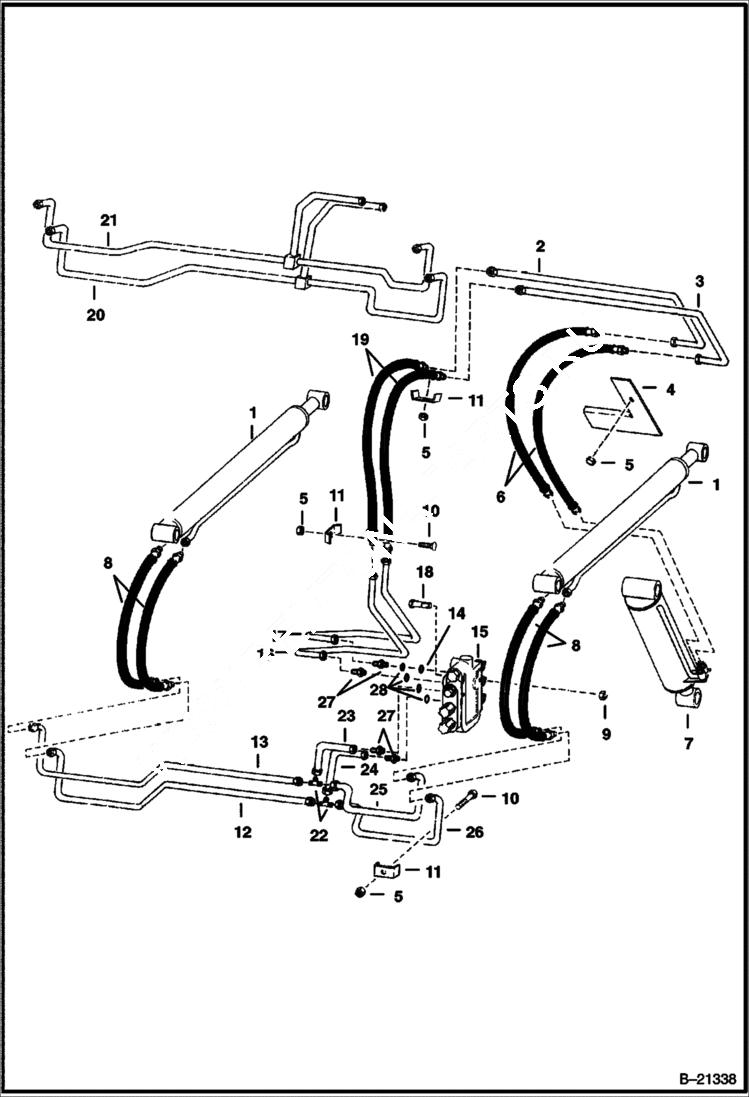

Запчасти Bobcat 500s HYDRAULIC CIRCUITRY HYDRAULIC SYSTEM

1

CYLINDER See Illustration LIFT CYLINDER/ B2206 LIFT

2

6553159

TUBE

3

6553160

TUBE

4

6553422

COVER

5

81D6

NUT

6

6553204

HOSE

7

CYLINDER See Illustration TILT CYLINDER/ B21341 See Illustration TILT CYLINDER/ C2001 TILT

8

6553244

HOSE

9

91D5

NUT 5 Was 81D-5 - B

10

6514571

BOLT

11

6502203

CLAMP

12

6560096

TUBE

13

6560097

TUBE

14

6631552

ORIFICE .1093'' (2,78mm) Dia. - Use only when replacing Ross Motors W/Char Lynn Motors

15

VALVE See Illustration HYDRAULIC VALVE/ B21339

16

6561950

TUBE

17

6553251

TUBE

18

17C532

BOLT 5

19

6553454

HOSE

20

TUBE NLA - Order 13, 22, 23 & 25

21

TUBE NLA - Order 13, 22, 24 & 26

22

10K6

FITTING

23

6560093

TUBE

24

TUBE NLA - Was 6560092 - A

25

6560095

TUBE

26

6560094

TUBE

27

15K6

ADAPTER

28

79K8

O RING 10 Was 91F-6 - A
