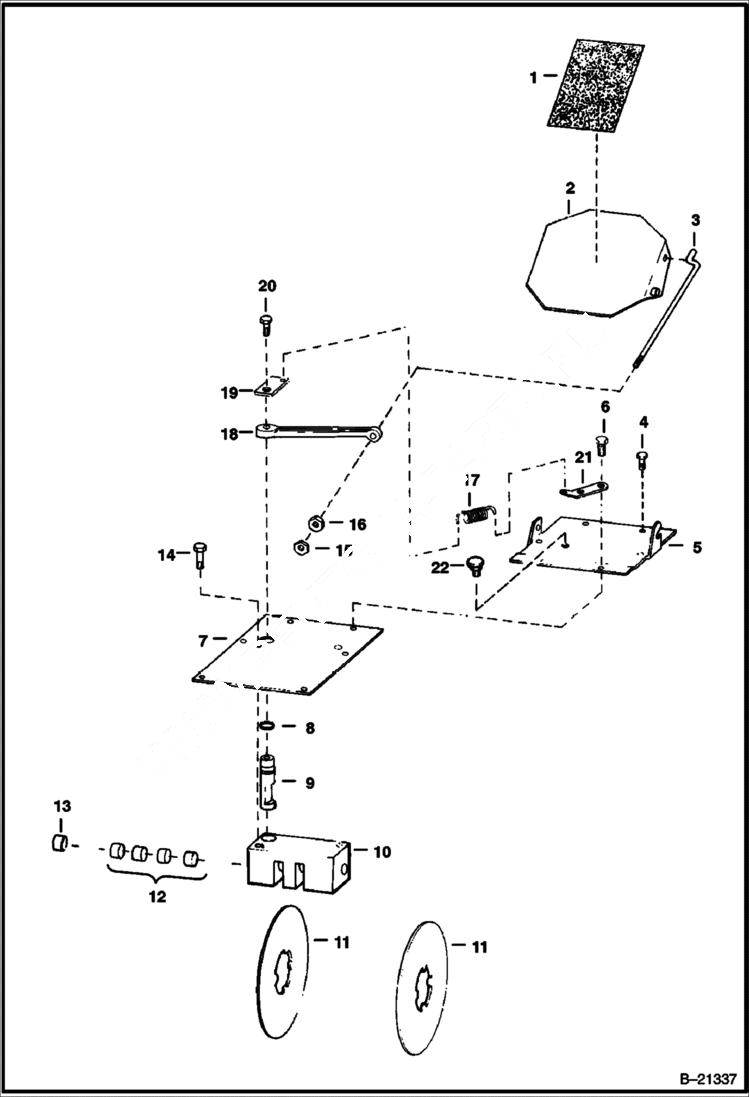

Запчасти Bobcat 500s DISC BRAKE New DRIVE TRAIN

1

6553976

SAFETY TREAD 127 x 203 mm (5 x 8'')

2

6563187

PEDAL

3

6554084

ROD

4

84G3712

BOLT 5

5

6575654

COVER Also Order Ref. 22 - Was 6554093 - A

6

84G3716

SCREW 5

7

6554088

COVER

8

25K20028

O RING 10 See BTI151

8

25K30100

O RING 10 See BTI151

9

PIN NLA - Was 6559216 - A

10

6559800

BLOCK

11

6559206

DISC, BRAKE

12

6557747

PAD

13

6559323

SPACER

14

17C812

BOLT

15

85D8

NUT, 5

16

6564669

NUT, 10 Was 6519169 - A

17

SPRING NLA - Was 6559219 - A

18

6563823

LEVER

19

6559217

BAR

20

17C816

BOLT

21

6559218

ANGLE

22

6632601

BREATHER
