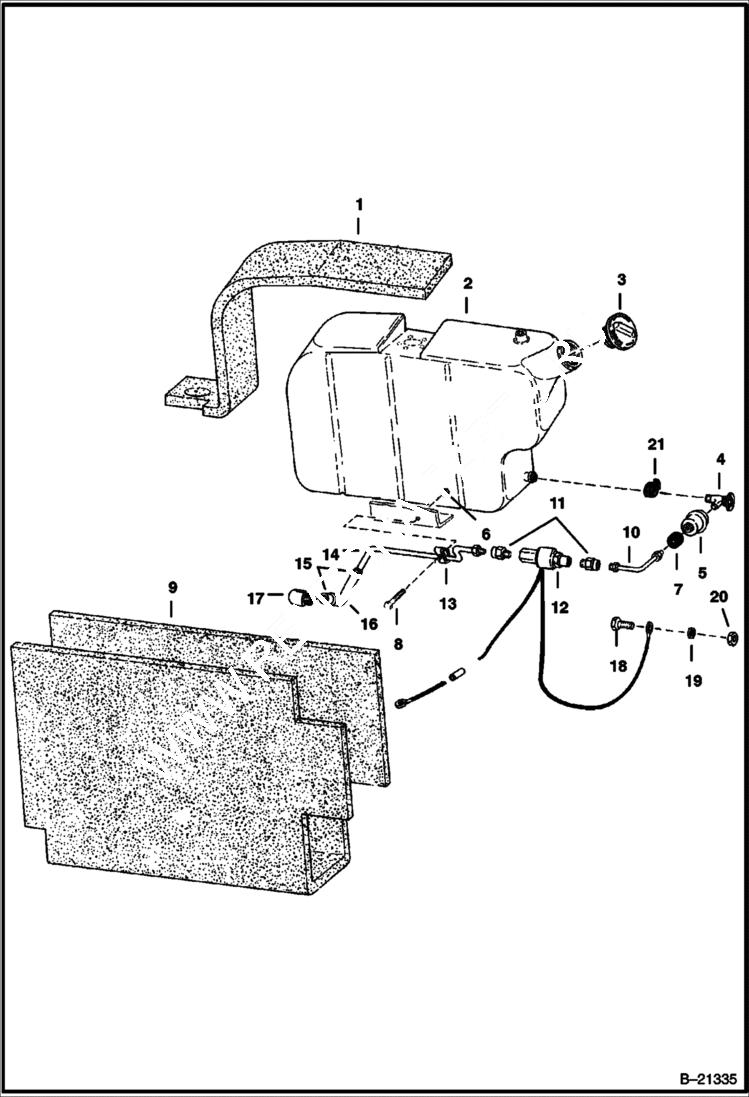

Запчасти Bobcat 500s FUEL SYSTEM S/N 14001 and Above MAIN FRAME

1

6555909

INSULATION

2

TANK NLA - Order 6560211 - Was 6557743 - A

3

6632468

CAP Was 6555717 - A

4

6512138

VALVE

5

6512106

ELEMENT

6

85D6

NUT, 5

7

6555249

GROMMET

8

10C512

BOLT Was 6553808 - A

9

6555908

INSULATION

10

6559152

TUBE

11

CONNECTOR NLA - Was 59F000004B - A

12

7024822

SOLENOID, FUEL Was 6559117

13

30H11

CLIP Was 30H8 - B

14

TUBE NLA - Was 6559187 - A

15

42HS04

CLAMP, HOSE Was 6515575 - A

16

6557832

HOSE

17

6515156

CONNECTOR

18

17C512

BOLT 5

19

6E5

WASHER

20

61D5

NUT

21

42HS8

CLAMP Was 6514005 - A
