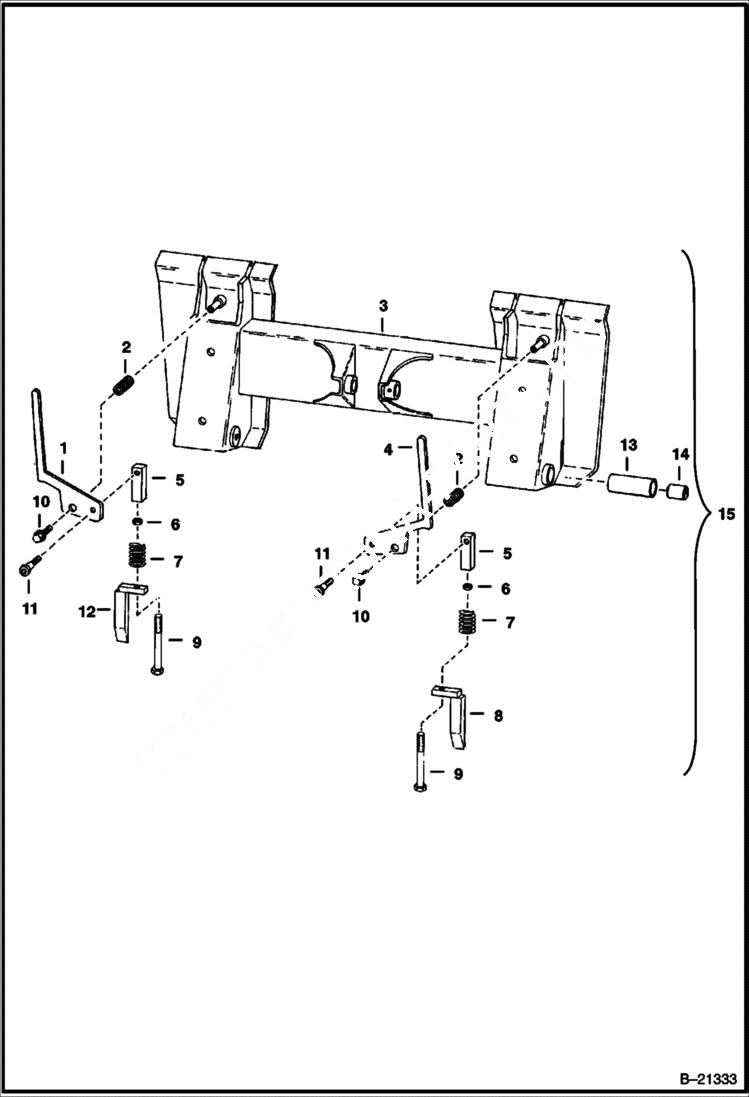

Запчасти Bobcat 500s BOB-TACH MAIN FRAME

1

6559984

LEVER L.H.

2

6704453

SPRING Was 6503387 - A

3

FRAME NLA

4

6559983

LEVER R.H.

5

6557080

BLOCK

6

7D8

NUT 5

7

6548407

SPRING

8

6548913

WEDGE R.H.

9

17C896

BOLT

10

6557232

BOLT

11

38C810

BOLT shoulder - Was 661846 - A

12

6548912

WEDGE L.H.

13

6565326

BUSHING W/Ref. 14

14

6589665

BUSHING Was 6562067 - B

15

BOB-TACH See Illustration DECALS/ E1131 See BTI288 NLA - Ref. 1-13 - Also Order 6561383 DECAL - Was 6559774 - A
