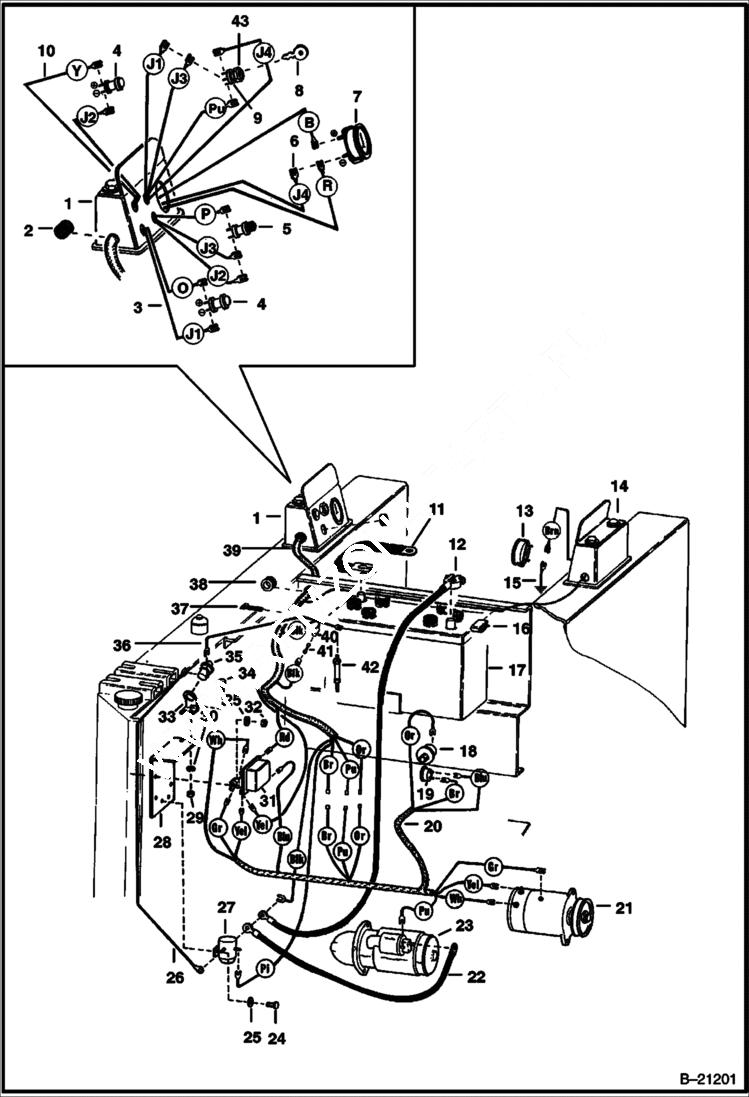

Запчасти Bobcat 500s MAIN FRAME ELECTRICAL CIRCUITRY M-500 Deutz Diesel ELECTRICAL SYSTEM

1

PANEL See Illustration MAIN FRAME ATTACHING PARTS/ B21119 INSTRUMENT - LEFT

2

GROMMET NLA - Was 585950 - A

3

WIRE

4

6515427

LIGHT oil pressure

5

6632973

SWITCH pre-heater - Was 600259B - A

6

WIRE

7

6512807

GAUGE ammeter

8

6505412

KEY

9

6518763

SWITCH ignition

10

WIRE

11

6553094

CABLE

12

6515494

CABLE

13

6660109

HOURMETER Was 6551203 - A

14

PANEL See Illustration MAIN FRAME ATTACHING PARTS/ B21120 INSTRUMENT - RIGHT

15

WIRE ground

16

CLIP NLA - Was 6502236 - A

17

6674687

BATTERY, DRY 600 AMP Was 6669318 - A

18

6515752

SWITCH oil pressure

19

1550963

SWITCH hour meter

20

HARNESS NLA - wiring - Was 6505884 - A

21

GENERATOR See Illustration BOSCH GENERATOR/ B21204

22

743367

CABLE

23

STARTER See Illustration STARTER/ B20825 W/SOLENOID

24

BOLT NLA - Was 17C000406B - A

25

25E13

WASHER 5

26

6516069

WIRE

27

6659319

SOLENOID pre-heater - Was 6632186 - A

28

PLATE NLA - Was 6506076 - A

29

61D4

NUT 5

30

4E4

WASHER

31

4109119

REGULATOR voltage

32

81D4

NUT

33

BRACKET NLA - Was 6504054 - A

34

17C412

BOLT 5

35

4102150

PLUG glow plug

35

6519258

FUSE glow plug

36

6516069

WIRE

37

6515196

STRAP

38

6515206

GROMMET

39

HARNESS NLA - wiring - Was 6501380 - A

40

HOLDER NLA - W/40 amp. fuse - Was 733642 - A

41

608869

FUSE 30 amp.

42

GLOW PLUG NLA - Was 6598786 - A

43

6502904

NUT ignition switch
