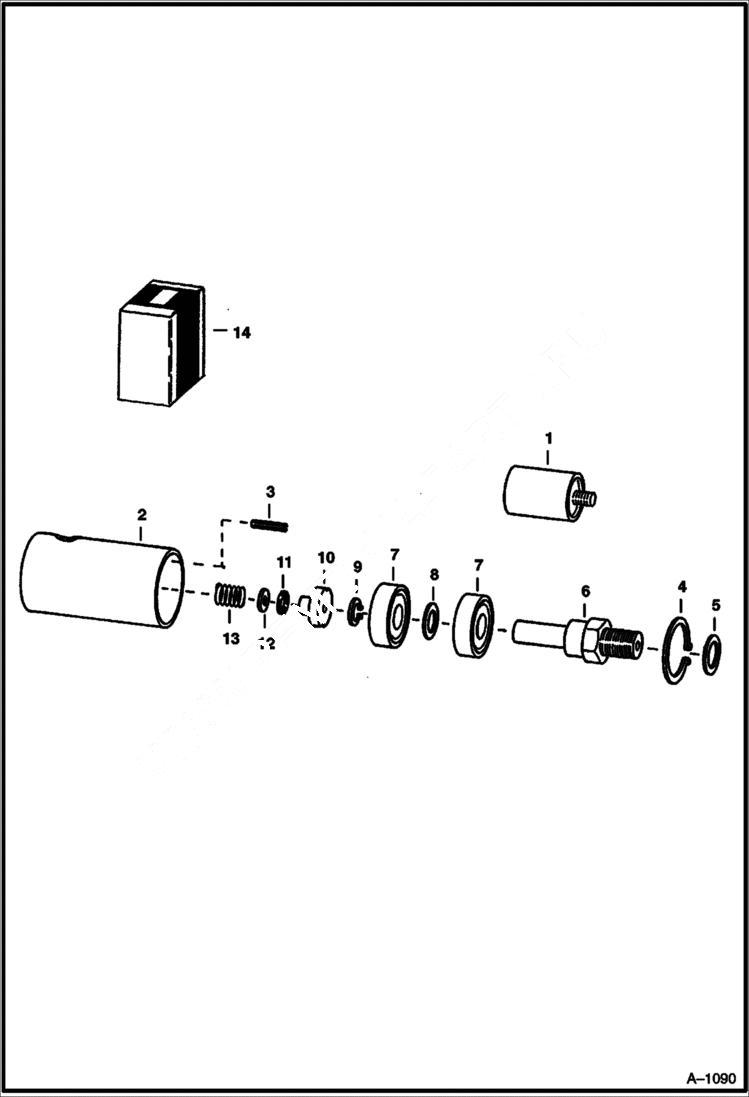

Запчасти Bobcat 500s VARIABLE SPEED SWIVEL COUPLING Deublin Union HYDRAULIC SYSTEM

1

6515432

COUPLING Deublin Union - Ref. 2 - 13 - Swivel coupler was painted silver.

2

HOUSING NLA

3

301923

ROLL PIN key

4

1310052

RETAINR

5

6515468

WASHER

6

6516299

ROTOR coupling

7

6516312

BEARING ball

8

896264

SHIM bearing

9

1319170

SNAP RING

10

6516301

SEAL floating

11

25K20005

O RING 10

12

888670

GUIDE seal

13

6516302

SPRING compression

14

REPAIR KIT Ref. 10 - 13 NLA - Ref. 10-13 - Was 6504946 - A
