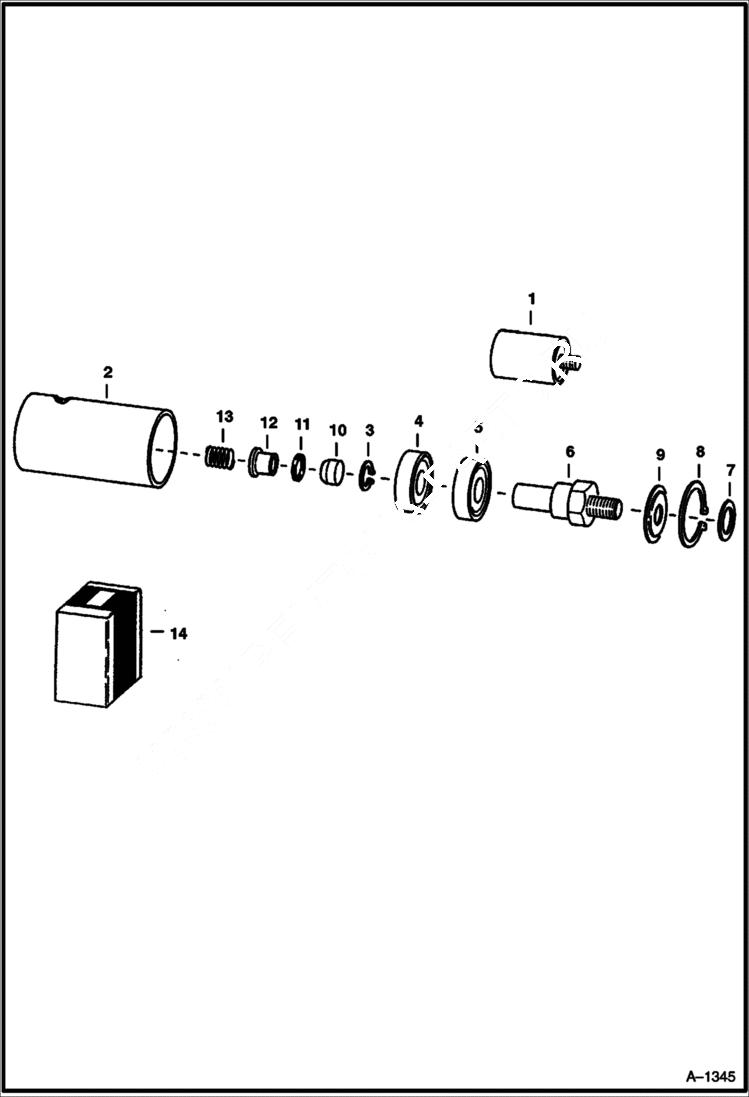

Запчасти Bobcat 500s VARIABLE SPEED SWIVEL COUPLING Farwick HYDRAULIC SYSTEM

1

COUPLING NLA - Fawick - Ref. 2-7 & 9-14 - Order 6515432 - Swivel coupler was painted red.

2

BODY NLA

3

6515254

SNAP RING

4

BEARING NLA - Was 6515253 - A

5

BEARING NLA - Was 6515252 - A

6

SHAFT NLA - Was 6505852 - A

7

6515468

WASHER sealing

8

SNAP RING NLA - Waa 666587 - A

9

6515251

SEAL grease

10

SEAL NLA - carbon - Was 6505999 - A

11

6515255

O-RING

12

CAP NLA - Was 6505998 - A

13

SPRING NLA - Was 6505854 - A

14

REPAIR KIT NLA - Ref. 9-13 - Was 6504937 - A
