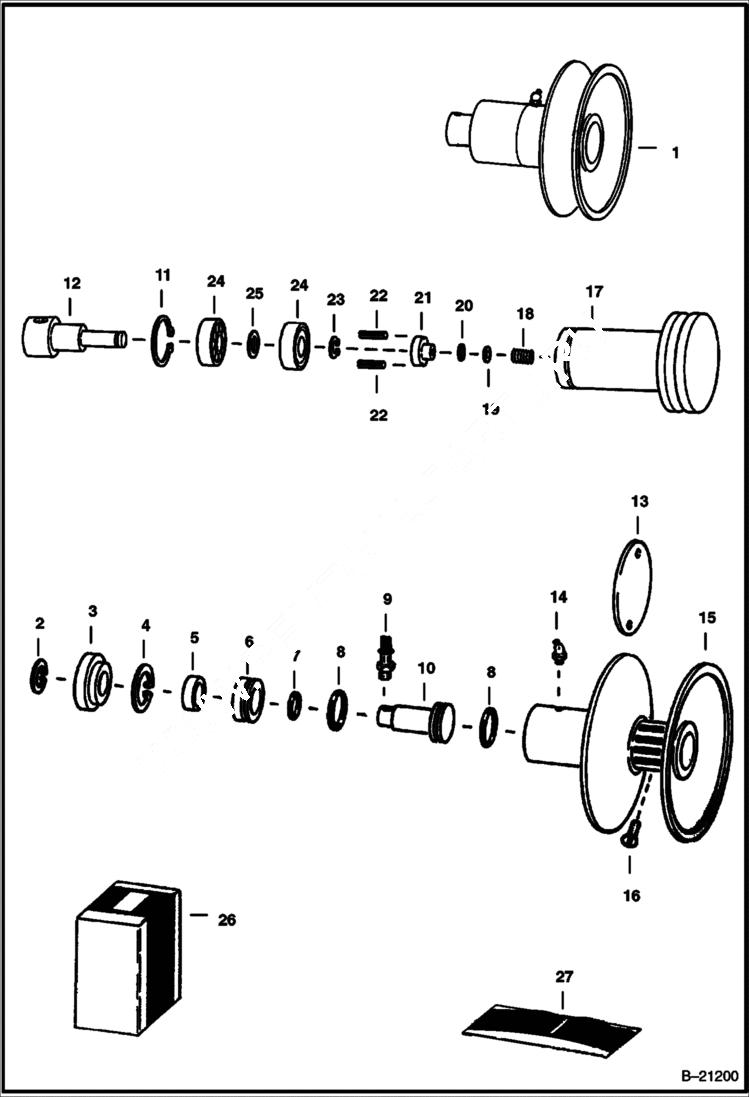

Запчасти Bobcat 500s VARIABLE SPEED DRIVE SHEAVE HYDRAULIC SYSTEM

1

6554946

SHEAVE ASSY. 500

1

6554945

SHEAVE ASSY. 444

2

6515571

SNAP RING

3

6504428

CAP

4

658524

RING

5

6515886

SEAL wiper

6

6504427

GLAND cylinder

7

58K216

O RING 10

8

58K325

O RING 10

9

6501441

HOSE

10

6515580

PISTON Ref. 11, 12 & 17 - 25

11

1310052

RETAINR

12

6516304

SWIVEL

13

6554939

COVER

14

11H25

FITTING10

15

6554940

SHEAVE Use W/6554946 - for 500

15

6554941

SHEAVE Use W/6554945 - for 444 & 500 diesel

16

15G606

SCREW

17

6516303

SHAFT

18

6516302

SPRING

19

888670

GUIDE seal

20

25K20005

O RING 10

21

6516301

SEAL floating

22

301923

ROLL PIN key

23

1319170

SNAP RING

24

6516312

BEARING

25

896264

SHIM

26

6505780

KIT rebuilding - Ref. 11, 12, 18-21 & 23-25

27

6661441

SEAL KIT Ref. 5, 7, 8 - Was 6561717 - A
