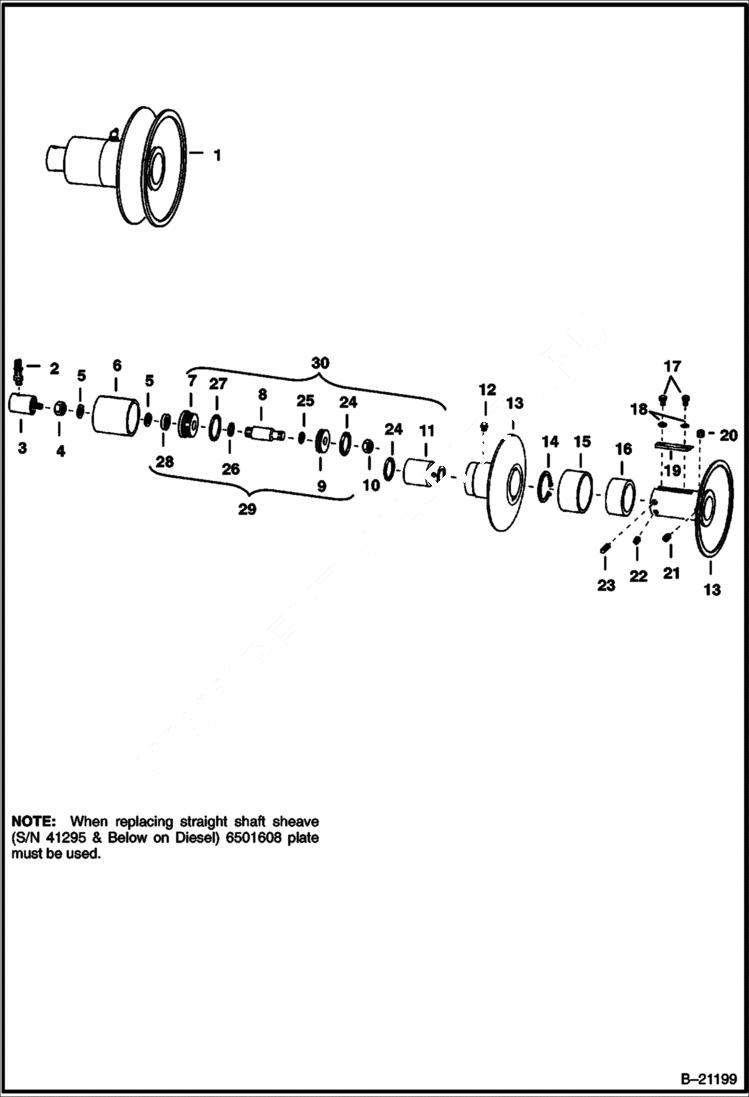

Запчасти Bobcat 500s VARIABLE SPEED DRIVE SHEAVE M-444 Gas & LP Gas, M-500 Diesel HYDRAULIC SYSTEM

1

SHEAVE ASSY. NLA - Ref. 3 - 13, 17 - 28 - Order 6554945

1

SHEAVE ASSY. NLA - tapered shaft - Ref. 3-13, 17-28, Replaced by 6502035 , 6501608 , 6501441 , 6502866 , 6E000006B, 17C000624B - for 500 diesel

2

6505680

HOSE 22'' (558,8mm)

2

6515161

HOSE 24'' (609,6mm)

2

6501441

HOSE 35'' (889,mm)

3

COUPLING See Illustration VARIABLE SPEED SWIVEL COUPLING/ A1090 See Illustration VARIABLE SPEED SWIVEL COUPLING/ A1345 ROTO-SWIVEL

4

8D12

NUT

5

WASHER NLA - Was 6502562

6

CAP NLA - Cylinder - Was 6504681 - A

7

GLAND NLA - cylinder - Order Ref. 1

8

6516216

ROD cylinder

9

PISTON NLA - cylinder - Order Ref. 1

10

8D10

NUT

11

BARREL NLA - cylinder - Order Ref. 1

12

11H25

FITTING10

13

HALVES NLA - Sheave - Matched pair only Ref. 13 & 17-21 - Order 6554945

13

HALVES NLA - sheave tapered shaft - Matched Pair Only - Ref. 13 & 17-21 - Order 6502035, 6501608, 6501441, 6502866, 6E000006B & 17C000624B

14

SNAP RING NLA - Was 1318435 - A

15

COLLAR NLA - idler - Was 6505825 - A

16

1318320

BUSHING idler - See Note

17

21G1008

SCREW cap

18

12E10

WASHER shakeproof - Was 9E000010B - A

19

KEY NLA - Was 6502399

19

8J5200

KEY Diesel

20

15G604

SCREW

21

15G606

SCREW

22

SCREW NLA - Was 6505111 - A

23

PIN NLA - Was 654632 - A

24

25K60120

O RING 10

25

25K30020

O-RING 10

26

25K40100

O RING 10

27

25K40200

O RING 10

28

200032

SEAL wiper

29

6661301

SEAL KIT Ref. 24 - 28 - Was 6504961 - A

30

CYLINDER NLA - drive - Ref. 7-11 & 24-28 - Order Ref. 1
