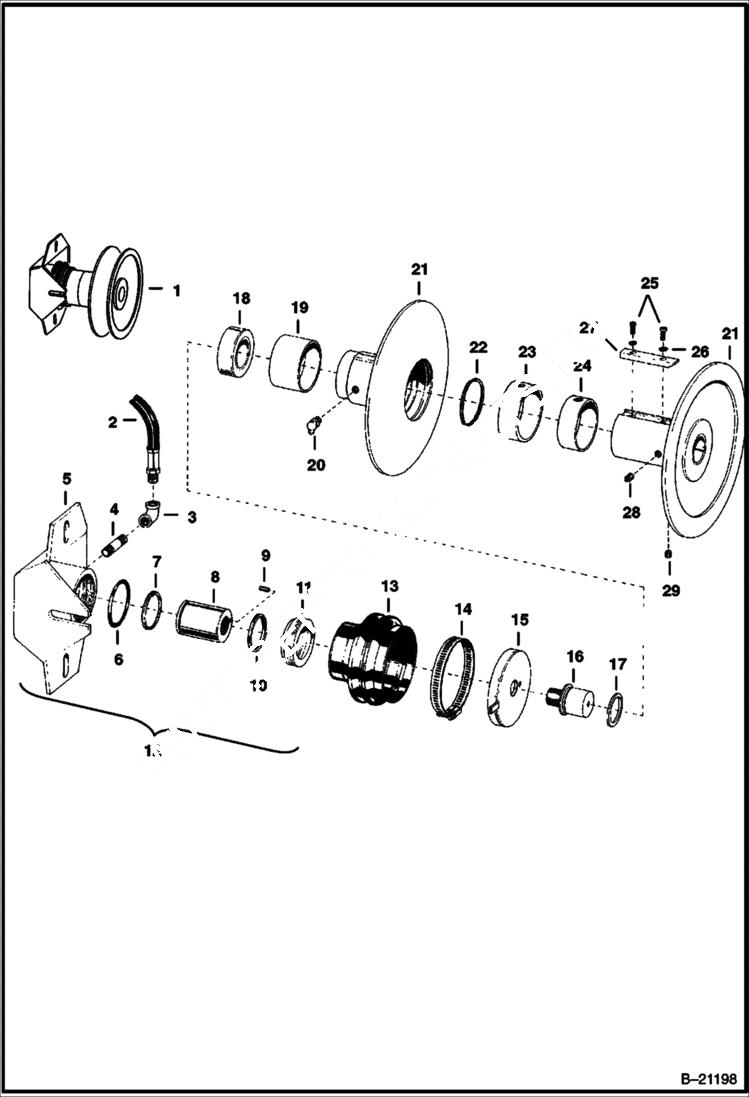

Запчасти Bobcat 500s VARIABLE SPEED DRIVE SHEAVE M-500 HYDRAULIC SYSTEM

1

SHEAVE ASSY. NLA - Order 6554946 , 6554939 & 6501441

2

HOSE NLA - Was 6505679 - A

2

6515160

HOSE

2

HOSE NLA - Flared SAE-FS - Was 6501440 - A

3

26K204

FITTING

4

5K216

NIPPLE pipe

5

BRACKET NLA - Was 6504697 - A

6

25K40212

O RING 10

7

SNAP RING NLA - Was 6515901 - A

8

6516201

PISTON

9

DOWEL NLA - Was 219277B - A

10

6515900

SEAL v-back

11

DRAW RING NLA - cylinder - Was 6502375 - A

12

6504938

CYLINDER Ref. 5 - 11

13

6502281

BOOT neoprene

14

42H64

CLAMP hose - Was 522633 - A

15

CUP NLA - Ref. 17 & 22-24 were eleminated on S/N 43276 & Above - these must be removed when replacing Ref. 15 - Was 6504827 - A

16

SHAFT NLA - stub - Was 6502398 - A

17

SPACER NLA

18

658927

BEARING thrust

19

CAP NLA - bearing retainer - Was 6502616 - A

20

11H25

FITTING10

21

SHEAVE NLA - halves - Order 6554946 , 6501441 & 6554939

22

SNAP RING NLA - Was 1318435 - A

23

COLLAR NLA - idler - Was 6505825 - A

24

1318320

BUSHING oilite

25

21G1008

SCREW socket head

26

15E10

WASHER Was 9E000010B - A

27

KEY NLA - Was 6502399

28

15G606

SCREW

29

15G604

SCREW
