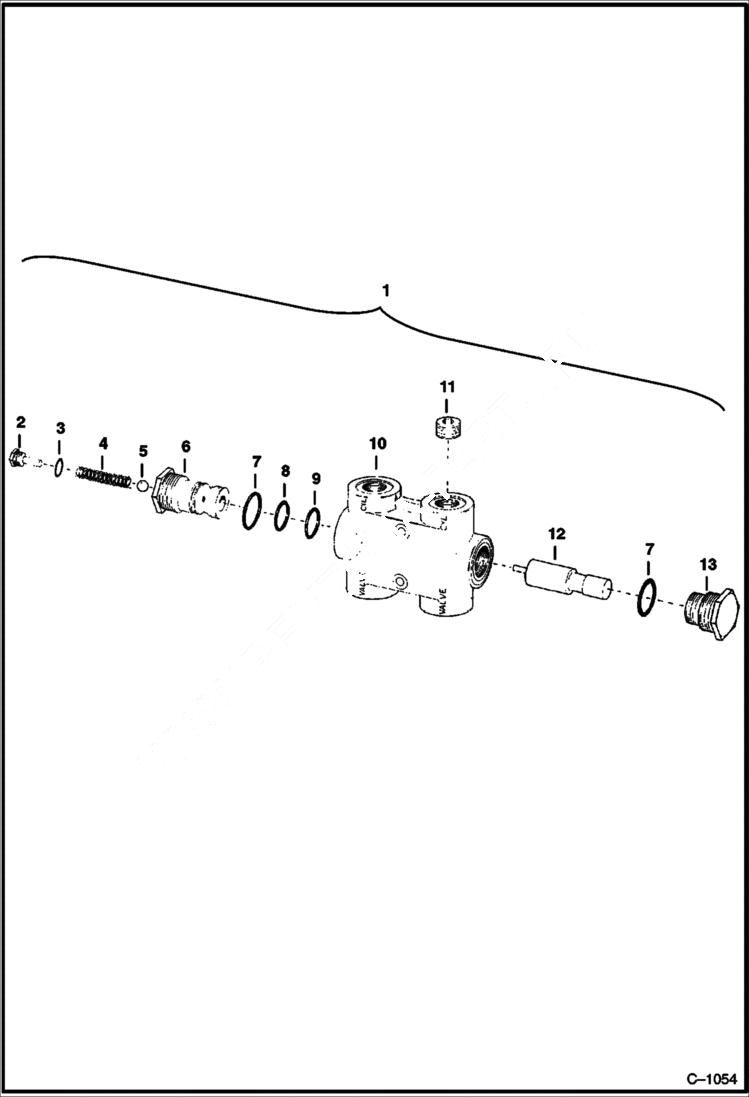

Запчасти Bobcat 500s VARIABLE SPEED CHECK VALVE Used W/6505683 Variable Speed Valve HYDRAULIC SYSTEM

1

VALVE NLA - Ref. 2 - 11 - Order 6702641

2

6515009

CAP

3

79K5

O RING 10 Was 91F000004B - A

4

6515056

SPRING

5

957852

BALL

6

6515008

BODY

7

6515234

O-RING head

8

6515237

O-RING seal

9

WASHER NLA - back-up - Was 80K000015B - A

10

HOUSING NLA

11

40K8

PLUG port

12

6515006

PISTON

13

6515241

PLUG
