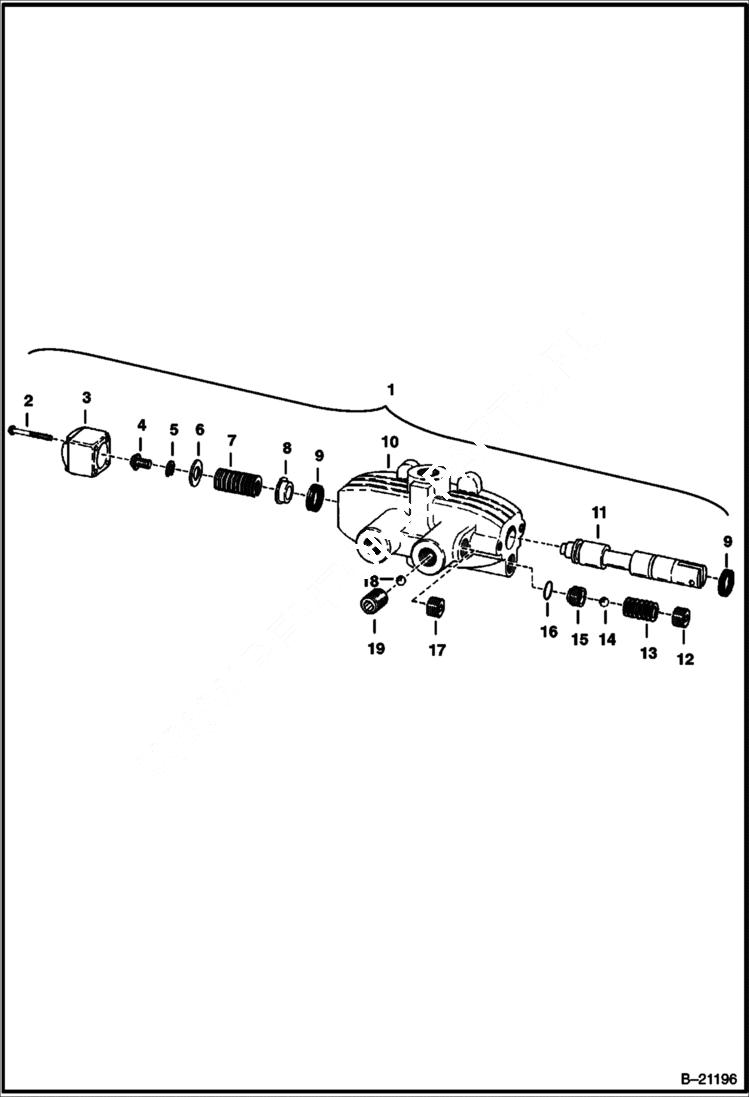

Запчасти Bobcat 500s VARIABLE SPEED VALVE M-444 S/N 30269 & Below, M-500 S/N 41399 & Below HYDRAULIC SYSTEM

1

VALVE NLA - Ref. 2 - 19 - Order 6702641

2

41G816

SCREW cap

3

980732

BONNET

4

89G408

BOLT

5

4E4

WASHER Was 24E00004B - A

6

664402

WASHER

7

980731

SPRING

8

6515012

COLLAR

9

662768

PACKING

10

HOUSING NLA

11

SPOOL NLA

12

16F6

PLUG

13

980733

SPRING

14

10J12

BALL

15

980735

SEAT

16

25K30012

O RING 10

17

16F4

PLUG port

18

6515029

BALL check

19

40K8

PLUG port
