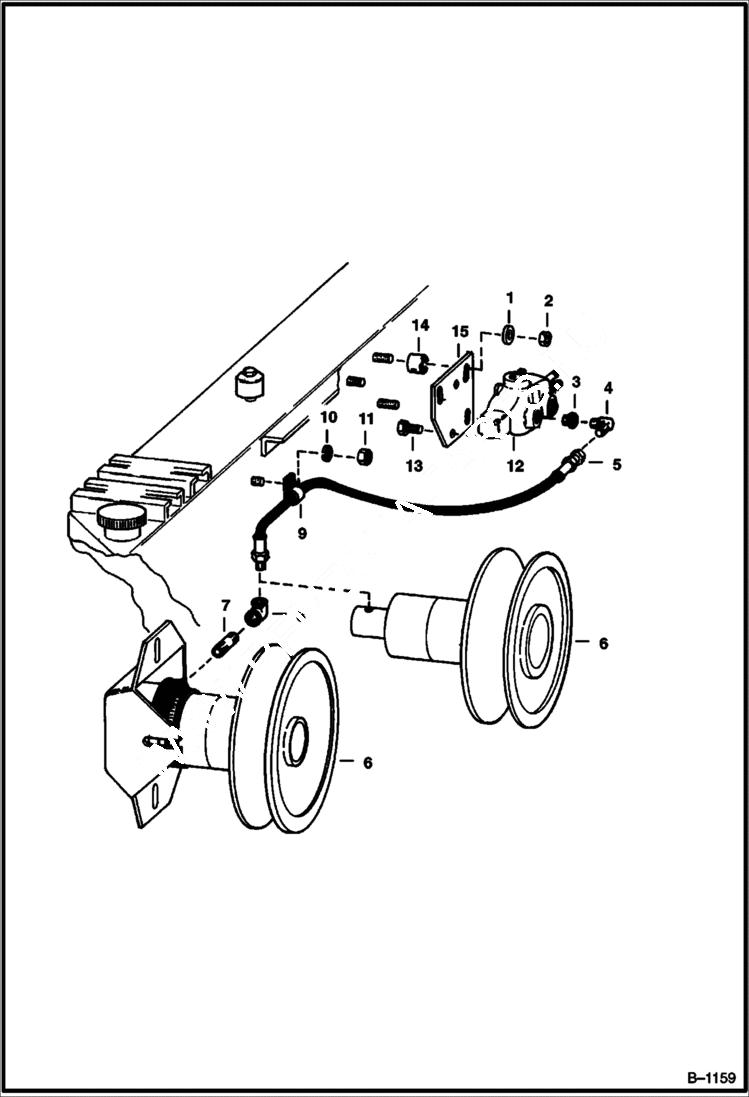

Запчасти Bobcat 500s VARIABLE SPEED DRIVE CIRCUITRY M-444 S/N 30619 & Above, M-500 S/N 44577 & Above HYDRAULIC SYSTEM

1

25E17

WASHER 5

2

81D6

NUT

3

19F5

BSHG

4

ELBOW NLA - Was 731745 - A

5

6501441

HOSE M-444

5

HOSE NLA - M-500 - Was 6501440 - A

6

SHEAVE See Illustration VARIABLE SPEED DRIVE SHEAVE/ B21199 See Illustration VARIABLE SPEED DRIVE SHEAVE/ B21198 See Illustration VARIABLE SPEED DRIVE SHEAVE/ B21200 DRIVE - VARIABLE SPEED

7

5K216

NIPPLE pipe

8

26K204

FITTING

9

30H34

CLAMP

10

4E4

WASHER

11

61D4

NUT 5

12

VALVE See Illustration VARIABLE SPEED VALVE/ C1053

13

17C608

BOLT

14

6502353

SPACER

15

PLATE NLA - Was 6505676 - A
