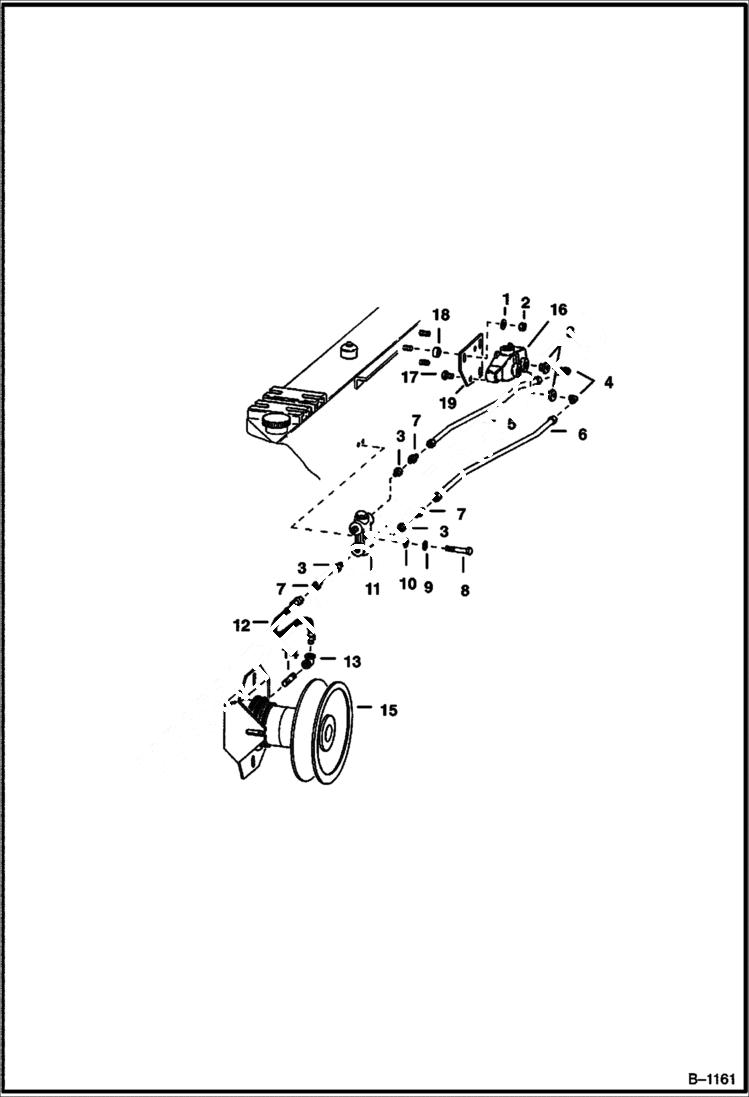

Запчасти Bobcat 500s VARIABLE SPEED DRIVE CIRCUITRY Used W/Speed Check Valve HYDRAULIC SYSTEM

1

25E17

WASHER 5

2

81D6

NUT

3

19F5

BSHG

4

ELBOW NLA - Was 6560020 - A

5

TUBE NLA - Was 6505682 - A

6

TUBE NLA - Was 6505681 - A

7

774433

ADAPTOR

8

17C536

BOLT

9

4E5

WASHER

10

25E15

WASHER

11

VALVE See Illustration VARIABLE SPEED CHECK VALVE/ C1054 NLA

12

6515161

HOSE M-444

12

6515160

HOSE M-500

13

26K204

FITTING

14

5K216

NIPPLE pipe

15

DRIVE See Illustration VARIABLE SPEED DRIVE SHEAVE/ B21199 See Illustration VARIABLE SPEED DRIVE SHEAVE/ B21200 See Illustration VARIABLE SPEED DRIVE SHEAVE/ B21198 VARIABLE SPEED

16

VALVE See Illustration VARIABLE SPEED VALVE/ B21197 NLA

17

17C608

BOLT

18

6502353

SPACER

19

PLATE NLA - Was 6505676 - A
