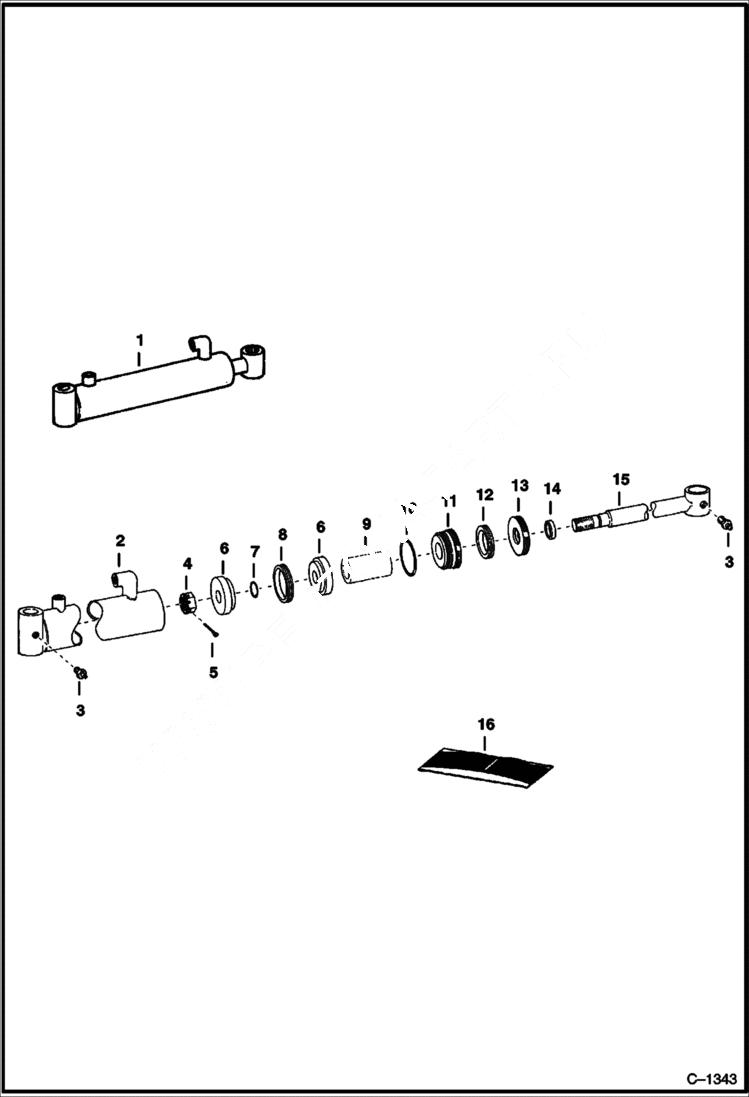

Запчасти Bobcat 500s LIFT CYLINDER 1-1/8 in. (28,58 mm) Shaft HYDRAULIC SYSTEM

1

CYLINDER NLA - Ref. 2 - 15 - Replaced by 6501103

2

CASE NLA

3

10H25

FITTING, GREASE 5

4

3D12

NUT castle

5

1F316

PIN

6

PISTON NLA - Was 6516207 - A

7

O-RING NSS

8

V-RING NSS - seal

9

SPACER NLA - Was 6505844 - A

10

O-RING NSS

11

GLAND NLA - Was 6505842 - A

12

V-RING NSS - seal

13

RING NLA - draw - Was 6505843 - A

14

SEAL NSS - wiper

15

6516204

SHAFT

16

6661303

SEAL KIT Ref. 7, 8, 10, 12 & 14 - Was 6505849 - A
