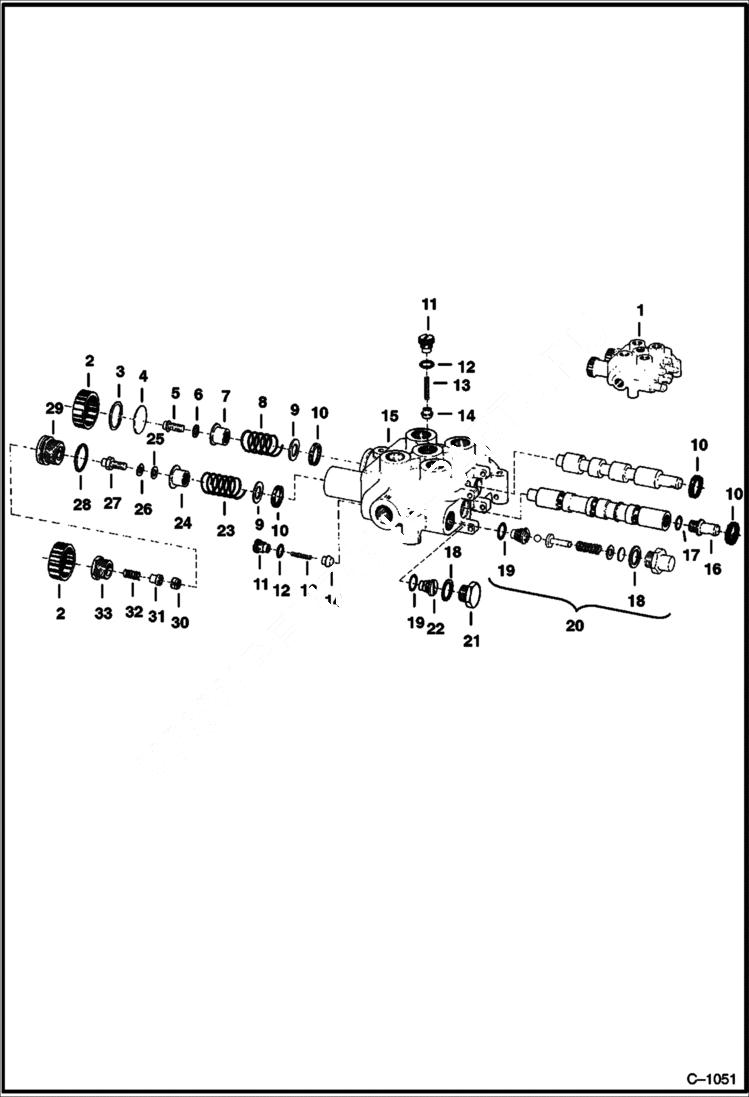

Запчасти Bobcat 500s LIFT CYLINDER & AUXILIARY VALVE Old Style HYDRAULIC SYSTEM

1

VALVE NLA - lift cylinder & auxiliary - Ref. 2 - 20 & 23 - 33 - Order 6504941

2

6515030

CAP

3

1318338

RING

4

6515015

DISC stop

5

89G408

BOLT

6

6515228

WASHER

7

6515014

COLLAR

8

6515016

SPRING

9

6515239

WASHER stop

10

6515313

SEAL

11

6515233

PLUG Check Assy (W/ O-Ring, Poppet & Spring

12

1318339

ORING

13

6515082

SPRING

14

6515078

POPPET

15

HOUSING NLA

16

6515084

CONNECTOR

17

79K6

O RING 10 Was 91F000005B - A

18

6515019

GASKET

19

79K8

O RING 10 Was 91F000006B - A

20

6516245

VALVE relief assy.

21

6515033

CAP

22

6515232

PLUG seat

23

6515064

SPRING

24

6515039

COLLAR

25

25E15

WASHER

26

4E5

WASHER

27

PLUG NLA

28

6515231

GASKET

29

COLLAR NLA - Order 6516242

30

KEEPER NLA - Order 6516242

31

STUD NLA - Order 6516242

32

SPRING NLA - Order 6516242

33

CAP NLA - Order 6516242
