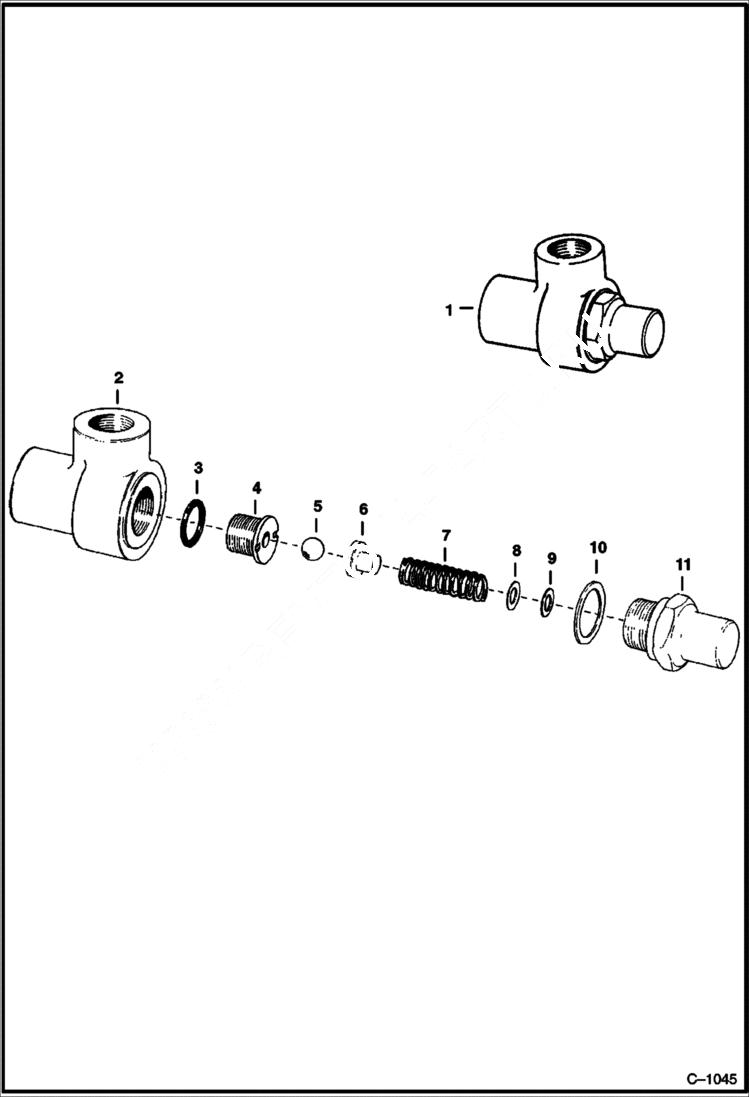

Запчасти Bobcat 500s MASTER RELIEF VALVE S/N 41339 & Below HYDRAULIC SYSTEM

1

VALVE NLA - master relief - Ref. 2 - 11, Order 6504940

2

HOUSING NLA

3

79K8

O RING 10 Was 91F000006B - A

4

SEAT NLA

5

957852

BALL

6

6515035

FOLLOWER

7

6515058

SPRING

8

WASHER NLA

9

6515026

SHIM

10

6515019

GASKET

11

BODY NLA
