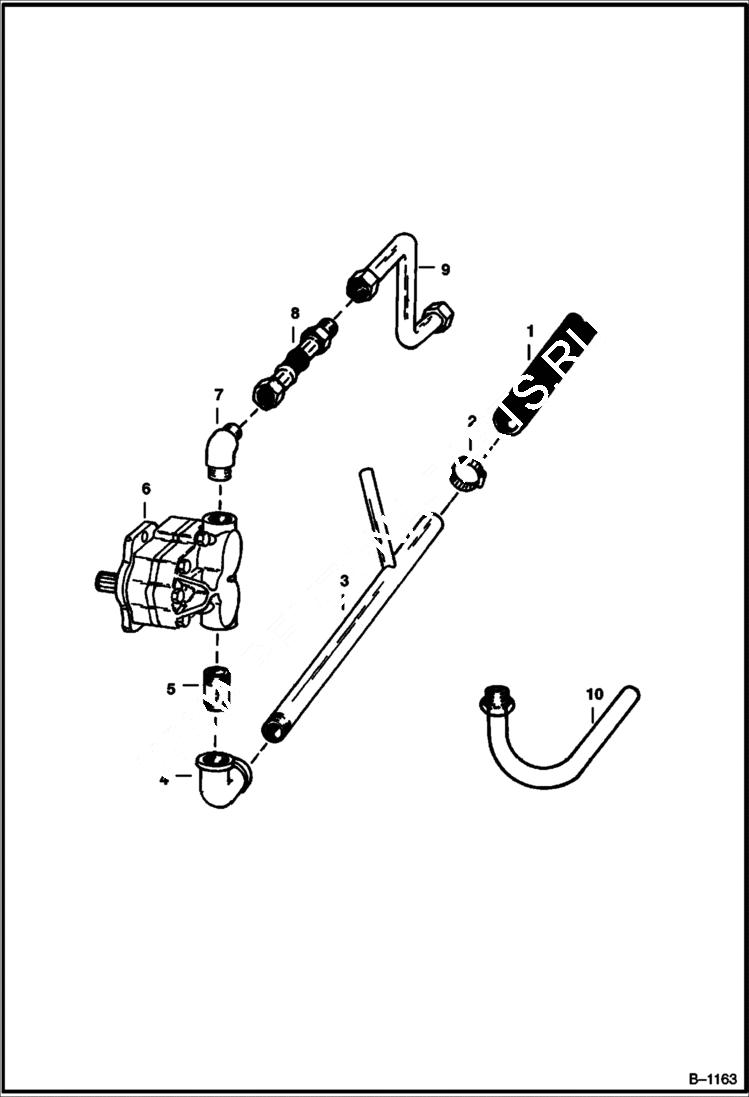

Запчасти Bobcat 500s HYDRAULIC PUMP CIRCUITRY M-444 Gasoline & LP S/N 30269 & Below M-500 Gasoline & LP S/N 41399 & Below HYDRAULIC SYSTEM

1

HOSE NLA - Order 33 in. of 6673825 - Was 6515157 - A

2

42H32

HS CLAMP5

3

6504699

TUBE

4

620560

ELBOW

5

5K611

NIPPLE

6

PUMP See Illustration HYDRAULIC PUMP/ B21193 See Illustration HYDRAULIC PUMP/ C1042A HYDRAULIC

7

83F8

ELBOW

8

6501054

HOSE

8

HOSE NLA - Was 6501186 - A

9

TUBE NLA - Was 6501101 - A

9

TUBE NLA - Was 6505685 - A

10

6505686

TUBE
