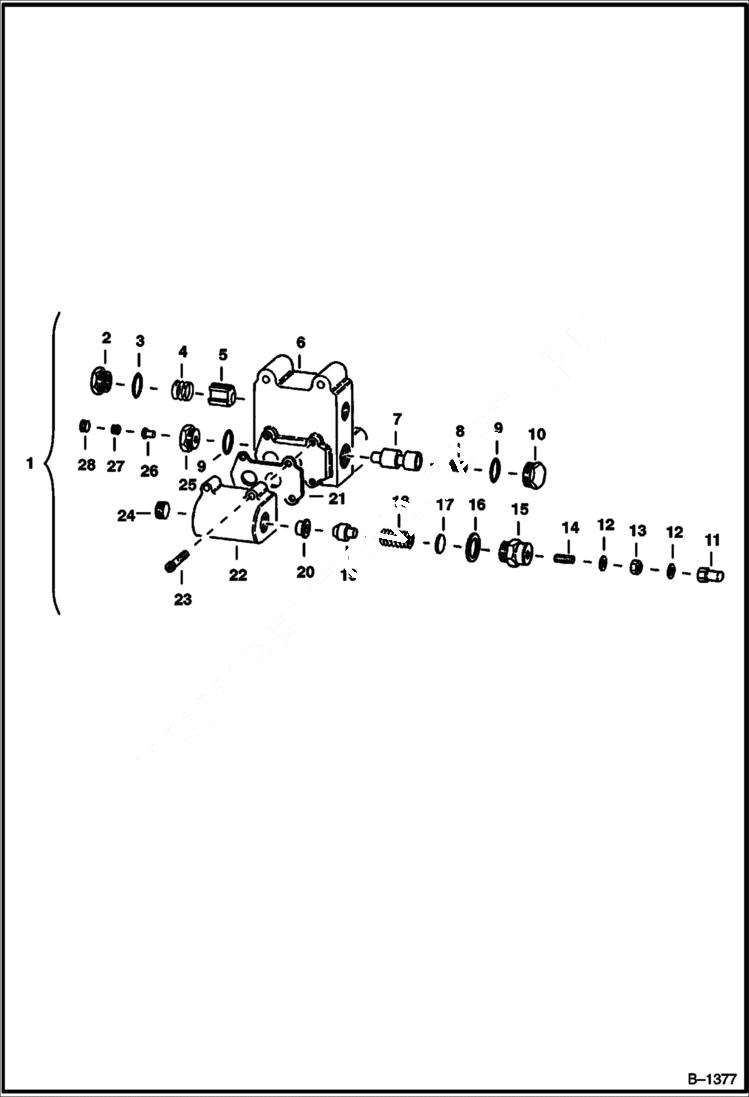

Запчасти Bobcat 500s REEL CONTROL VALVE B.O.M. Electric HYDRAULIC SYSTEM

1

VALVE NLA - Ref. 2 - 28 - Order 6519641

2

BUSHING NLA

3

O-RING NLA

4

SPRING NLA

5

VALVE NLA

6

BODY NLA

7

SPOOL NLA

8

SPRING NLA

9

O-RING NLA

10

PLUG NLA

11

CAP NLA

12

WASHER NLA

13

NUT NLA

14

STUD NLA

15

CAP NLA

16

WASHER NLA

17

STOP NLA

18

SPRING NLA

19

POPPET NLA

20

SEAT NLA

21

GASKET NLA

22

BODY NLA

23

SCREW NLA

24

PLUG NLA

25

BODY NLA

26

PLUNGER NLA

27

SPRING NLA

28

PLUG NLA
