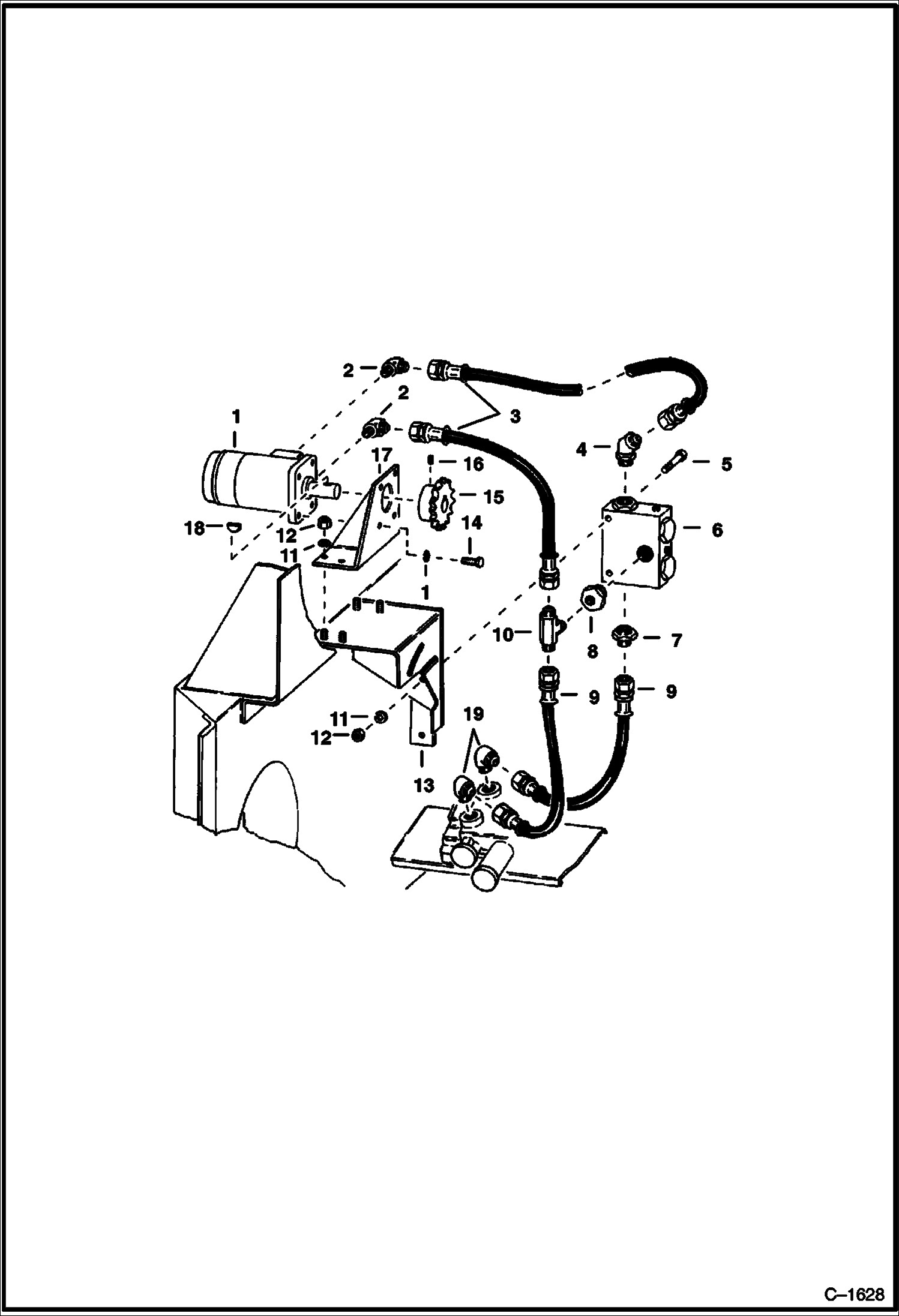

Запчасти Bobcat 500s REEL DRIVE CIRCUITRY B.O.M. Electric - S/N 1063 & Above HYDRAULIC SYSTEM

1

6517490

MOTOR See Illustration HYDRAULIC MOTOR/ B21305 REEL

2

662487

ELBOW

3

1309850

HOSE

4

6519639

ELBOW

5

17C644

BOLT

6

6519641

VALVE reel

7

731794

CONNECTR W/O-Ring

7

79K10

O RING 10

8

6519640

BUSHING

9

HOSE NLA - Was 6506544 - A

10

6518605

TEE

11

4E6

WASHER

12

61D6

NUT 5

13

6544989

STRAP

14

17C612

BOLT 5

15

SPROCKET NLA - Was 6506400 - A

16

16G612

SET SCREW

17

6544156

MOUNT

18

6J808

KEY, WOODRUFF

19

662482

ELBOW
