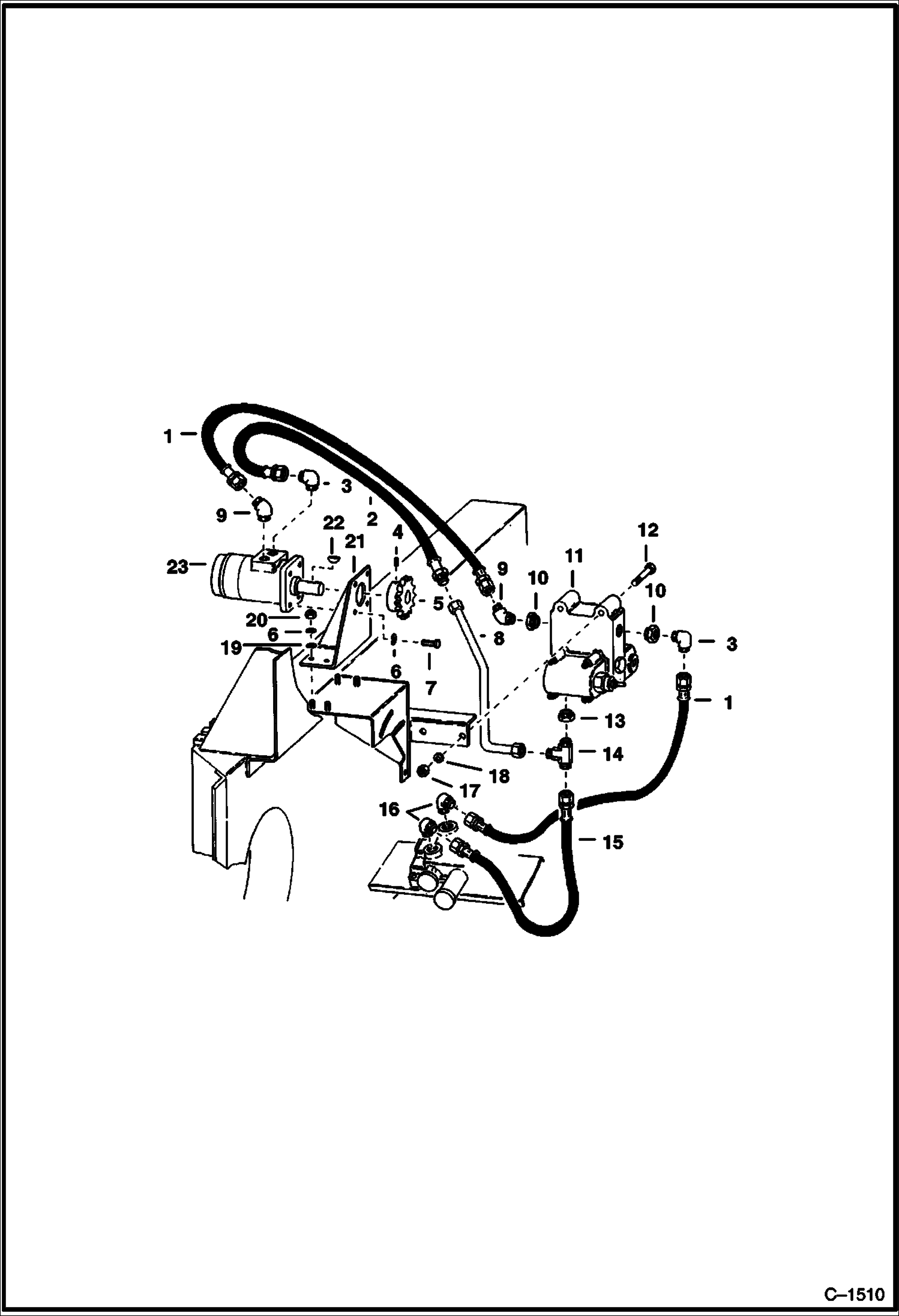

Запчасти Bobcat 500s REEL DRIVE CIRCUITRY B.O.M. Electric - S/N 4954-A-1001 to 1062 HYDRAULIC SYSTEM

1

HOSE NLA - Was 6506543 - A

2

6501052

HOSE

3

662487

ELBOW

4

16G612

SET SCREW

5

SPROCKET NLA - Was 6506400 - A

6

4E6

WASHER

7

17C612

BOLT 5

8

6505837

TUBE

9

357348

ELBOW

10

19F9

BUSHING

11

6519641

VALVE See Illustration REEL CONTROL VALVE/ B1377 REEL - WAS 6517498 - A

12

17C848

BOLT

13

19F8

FITTING

14

TEE NLA - Was 42K000006B - A

15

HOSE NLA - Was 6506544 - A

16

662482

ELBOW

17

61D8

NUT 5

18

4E8

WASHER

19

784469

WASHER flat

20

61D6

NUT 5

21

6505560

BRACKET

22

6J808

KEY, WOODRUFF

23

6517490

MOTOR See Illustration HYDRAULIC MOTOR/ B21305 REEL
