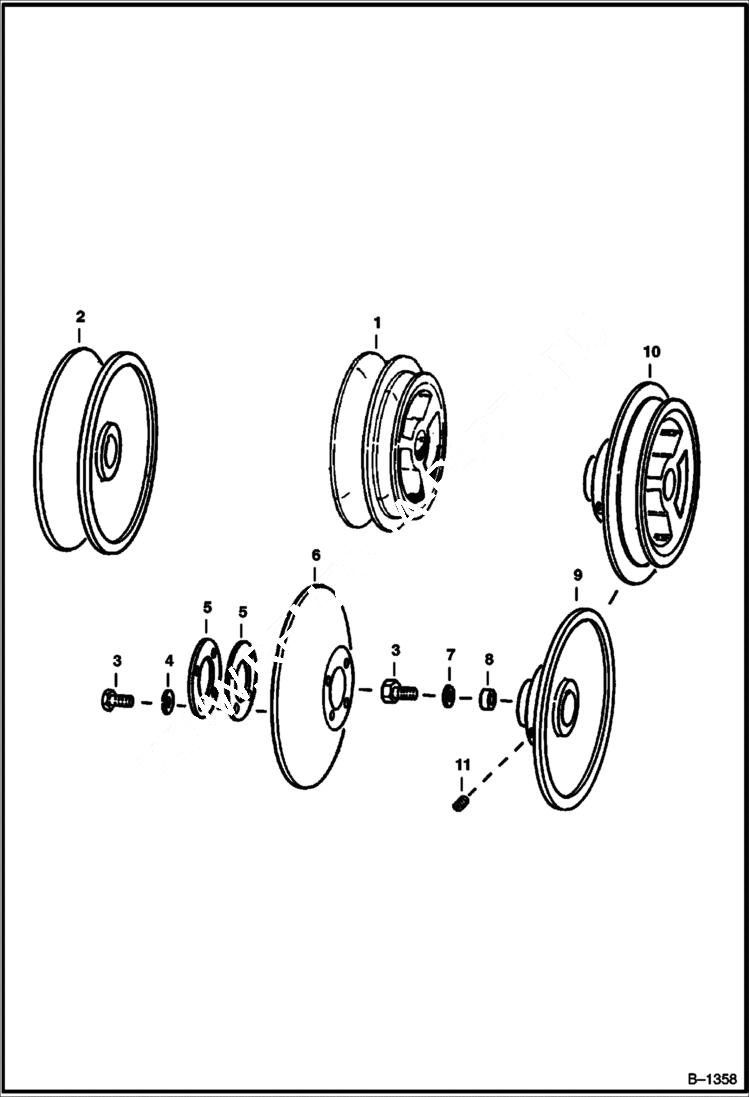

Запчасти Bobcat 500s FIXED DRIVE SHEAVE HYDRAULIC SYSTEM

1

6505435

SHEAVE Assembly - Ref. 3 - 8, 10 & 11

2

SHEAVE NLA - Assembly - Ref. 3 - 9 & 11 - Was 6505436 - A

3

17C620

BOLT

4

4E6

WASHER

5

6505391

SHIM

6

6505382

SHEAVE half

7

6E6

WASHER

8

6502866

WASHER

9

SHEAVE NLA - half - used on straight shaft - Was 6505380 - A

10

SHEAVE NLA - halt - used on tapered shaft - Was 6505381 - A

11

15G606

SCREW
