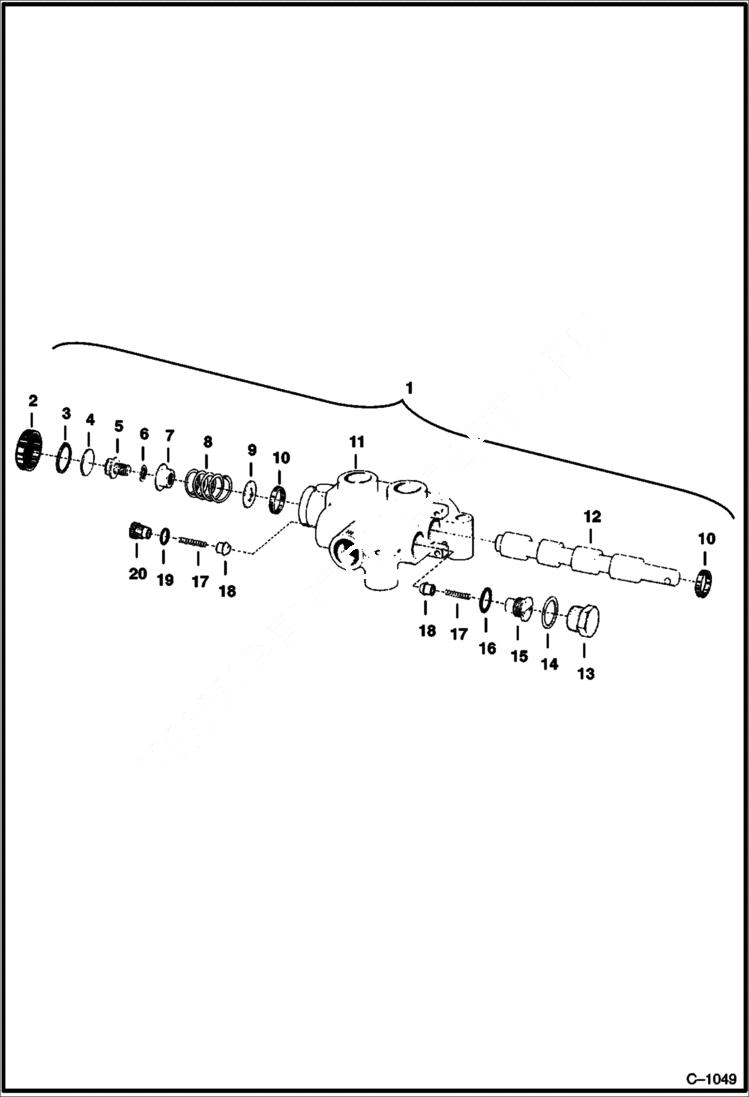

Запчасти Bobcat 500s TILT CYLINDER VALVE HYDRAULIC SYSTEM

1

6504942

VALVE Ref. 2 - 20

2

6515030

CAP rubber

3

1318338

RING

4

6515015

DISC stop

5

89G408

BOLT

6

6515228

WASHER shakeproof

7

6515014

COLLAR stop

8

6515034

SPRING centering

9

6515239

WASHER stop

10

6515313

SEAL spool

11

HOUSING NLA

12

SPOOL NSS - 2-way

13

6515033

CAP

14

6515019

GASKET

15

6515232

PLUG seat

16

79K8

O RING 10

17

6515082

SPRING

18

6515078

POPPET check

19

1318339

ORING

20

6515233

PLUG Check Assy (W/ O-Ring, Poppet & Spring
