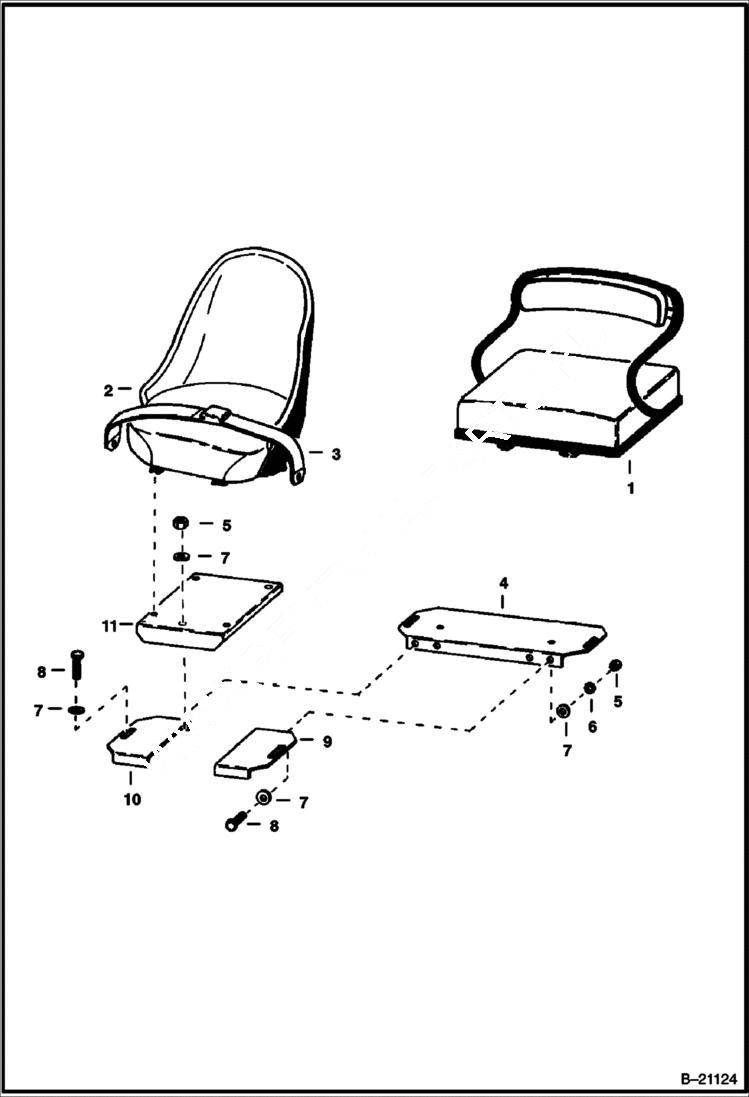

Запчасти Bobcat 500s SEAT & SEAT MOUNTING MAIN FRAME

1

SEAT ASSY. NLA - Was 6515586

1

CUSHION NLA - back - Was 6515201 - A

1

CUSHION NLA - seat - Was 6515200 - A

2

SEAT NLA - bucket - Order 6665401 - If Ref. 11 doesn't have 2 sets of holes, also Order Ref. 11 - Was 6515423 - A

2

CUSHION NLA - back - Was 891055 - A

2

891056

CUSHION seat - Was 6559098 - D

3

SEAT BELT NLA - Order 6675074 seat belt & (2) of 6725373 spring plate - Was 6563214 - A

4

COVER NLA - engine - Was 6504701 - A

5

61D6

NUT 5

6

4E6

WASHER

7

25E17

WASHER 5

8

17C612

BOLT 5

9

COVER NLA - battery - LH - Was 6502627 - A

10

COVER NLA - battery - RH - Was 6502628 - A

11

6559095

BRACKET
