Запчасти Bobcat 500s HYDRAULIC PUMP Eaton #26006-LAT HYDRAULIC SYSTEM

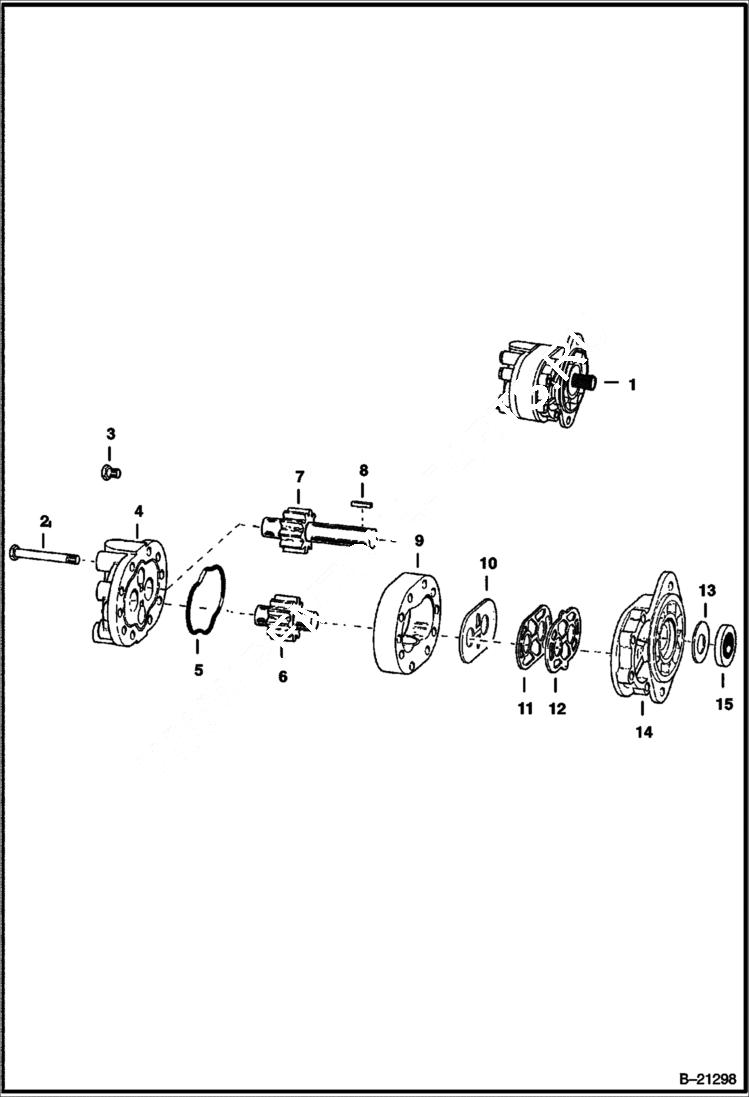

Схема запчастей Bobcat 500s - HYDRAULIC PUMP Eaton #26006-LAT HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6673174

PUMP

2

6632000

SCREW

3

PLUG NLA - Order 6668013 - Was 6668700 - A

4

6673146

BACKPLATE W/Bushings

5

O-RING NLA - Order 6668013 - A

6

6673149

GEAR IDLR idler assy.

7

6673148

GEARDRIVE drive assy.

8

6652904

KEY square

9

6673147

BODY

10

PLATE NLA - Order 6668013 - Was 6668703 - A

11

O-RING NLA - Order 6668013 - Was 6668701 - A

12

SEAL NLA - Order 6668013 - Was 6668702 - A

13

WASHER NLA - Order 6668013 - Was 945412 - A

14

6671632

VALVE front

15

1571759

SEAL shaft

Выбрано товаров: 15
