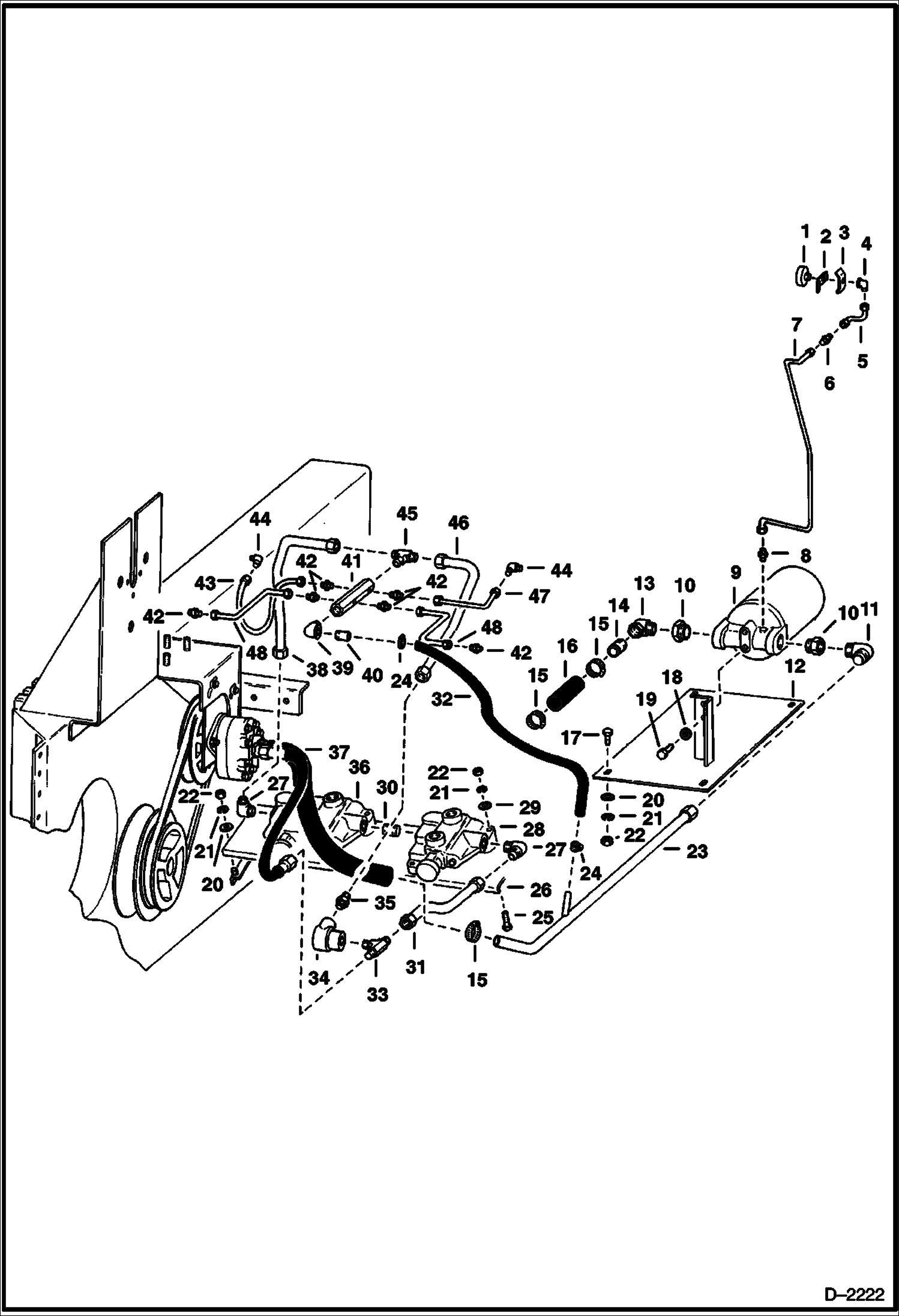

Запчасти Bobcat 500s MAIN FRAME HYDRAULIC CIRCUITRY B.O.M. Electric - S/N 4954-A-1001 to 1027 HYDRAULIC SYSTEM

1

6654208

GAUGE Was 6518226 - A

2

BRACKET NLA - Was 6503450 - A

3

BRACKET NLA - Was 6502775 - A

4

85F3

ELBOW

5

TUBE NLA - Was 6501116 - A

6

87F3

ADAPTOR

7

TUBE NLA - Was 6501118 - A

8

89F3

ADAPTOR reducing

9

FILTER See Illustration HYDRAULIC OIL FILTER/ B13878 NLA - hydrostatic - 10 micron - Was 6555477 - A

10

19F16

BUSHING reducing

11

83F10

ELBOW

12

NLA - Was 6504718 - A

13

26F6

ELBOW

14

ADAPTER NLA - Was 6502416 - A

15

42H32

HS CLAMP5

16

6515158

HOSE

17

17C616

BOLT 5

18

25E15

WASHER flat

19

17C512

BOLT 5

20

784469

WASHER flat

21

4E6

WASHER

22

61D6

NUT 5

23

TUBE NLA - Was 6501981 - A

24

42H12

CLAMP 10

25

17C640

BOLT 5

26

6502908

PLATE

27

83F8

ELBOW

28

6504942

VALVE See Illustration TILT CYLINDER VALVE/ C1049 TILT

29

25E17

WASHER 5 flat

30

5K611

NIPPLE

31

TUBE NLA - Was 6501033 - A

32

6504396

HOSE

33

6515134

TEE

34

6504940

VALVE See Illustration MASTER RELIEF VALVE/ B13855

35

663013

CONN reducing

36

6504941

VALVE See Illustration LIFT CYLINDER & AUXILIARY VALVE/ C1240 LIFT AND AUX.

37

PUMP See Illustration HYDRAULIC PUMP CIRCUITRY/ B21297 CIRCUITRY

38

TUBE NLA - Was 6505816 - A

39

26F4

ELBOW

40

6511859

ADAPTER

41

6501073

VALVE See Illustration CLUTCH PRESSURE RELIEF VALVE/ B1170

42

89F5

CONNECTR reducing

43

TUBE NLA - Was 6506734 - A

44

83F5

ELBOW

45

98F8

TEE

46

6505817

TUBE

47

TUBE NLA - Was 6501158 - A

48

TUBE NLA - Was 6501068 - A
