Запчасти Bobcat 500s VARIABLE SPEED JACKSHAFT Straight Jackshaft DRIVE TRAIN

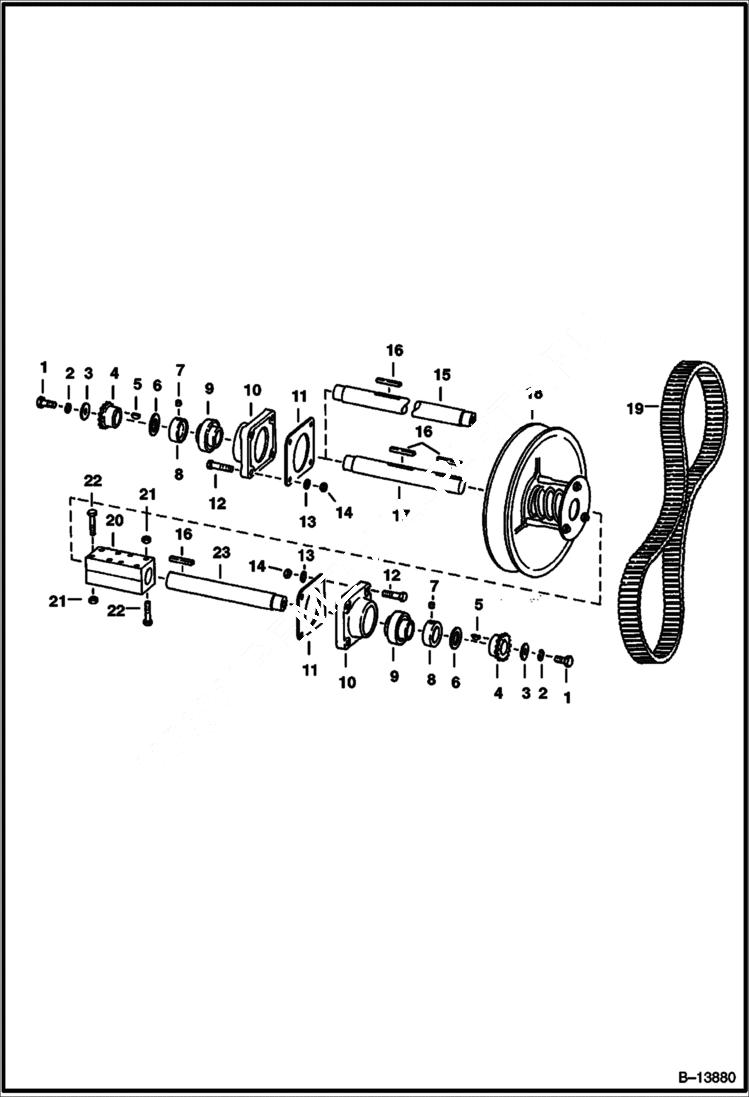

Схема запчастей Bobcat 500s - VARIABLE SPEED JACKSHAFT Straight Jackshaft DRIVE TRAIN

Артикул

Название

Примечание

Количество

1

17C816

BOLT

2

4E8

WASHER

3

672568

WASHER flat

4

6502315

SPROCKET

5

5J806

KEY

6

6502521

WASHER

7

15G606

SCREW

8

6515106

COLLAR locking

9

6518862

BEARING W/Out Collar - Was 6509275

10

6515105

HOUSING bearing

11

6502341

GASKET

12

17C824

BOLT 5

13

6515466

WASHER sealing

14

81D8

NUT

15

JACKSHAFT See BTI101 NLA

16

7J3200

KEY

17

JACKSHAFT See BTI101 NLA - Left

18

SHEAVE See Illustration VARIABLE SPEED DRIVEN SHEAVE/ C1015 See BTI101 NLA - DRIVEN

19

6504510

BELT

20

6502810

SPLICER

21

82D5

NUT 5

22

18C544

BOLT 5

23

6551114

JACKSHAFT half - Right

Выбрано товаров: 23
