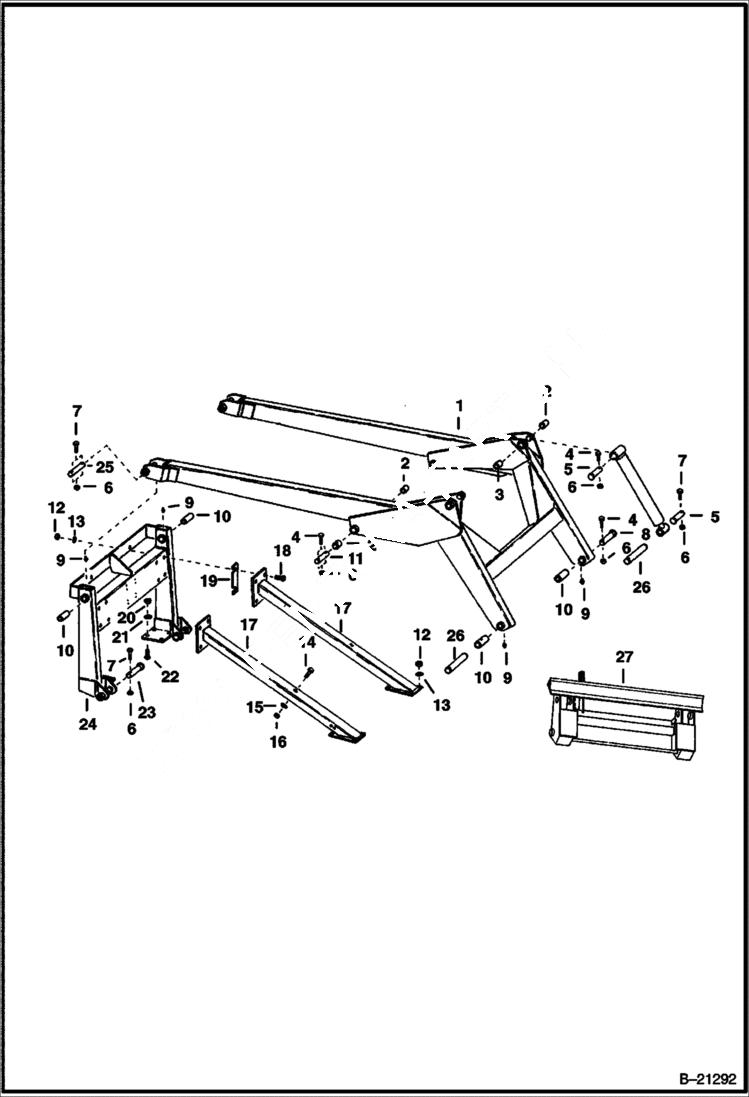

Запчасти Bobcat 500s LIFT ARM & UPRIGHT ASSEMBLY Replaceable Bushings MAIN FRAME

1

KIT NLA - lift arm - W/Ref. 2, 3 & 10 - prime painted only - Was 6567594 - A

2

6502822

BUSHING

3

6508743

BUSHING

4

17C536

BOLT

5

6502783

PIN hinge

6

91D5

NUT 5 Was 81D-5 - A

7

17C532

BOLT 5

8

6502779

PIN hinge

9

36H25

FITTING

10

6502787

BUSHING pin

11

PIN NLA - hinge - Was 6502782 - A

12

61D8

NUT 5

13

4E8

WASHER

14

17C640

BOLT 5

15

4E6

WASHER

16

61D6

NUT 5

17

BRACE NLA - support - Was 6504839 - A

18

17C824

BOLT 5

19

SHIM NLA - upright brace - Was 6505358 - A

20

85D10

NUT, 5

21

4E10

WASHER

22

6514516

BOLT carriage

23

6502781

PIN hinge - Lift Cylinder Base End

24

UPRIGHT NLA - Was 6504740 - A

25

6502784

PIN hinge

26

6551636

PIN New Bob-Tach

27

BOB-TACH See Illustration BOB-TACH/ B20797 See Illustration BOB-TACH/ A1216
