Запчасти Bobcat 500s MAIN FRAME ATTACHING PARTS Left Side MAIN FRAME

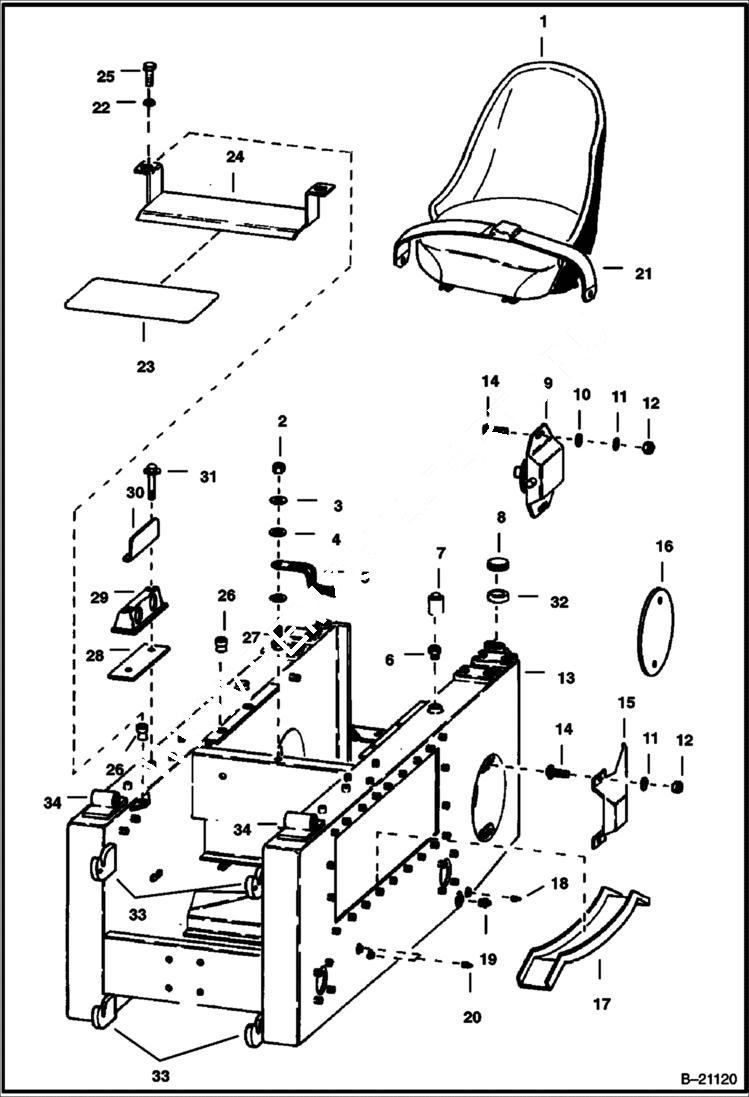

Схема запчастей Bobcat 500s - MAIN FRAME ATTACHING PARTS Left Side MAIN FRAME

Артикул

Название

Примечание

Количество

1

SEAT See Illustration SEAT & SEAT MOUNTING/ B21124 NLA - WAS 6515423 - A

2

61D6

NUT 5

3

25E17

WASHER 5

4

6E6

WASHER

5

6553094

CABLE ground

6

19F7

BUSHING

7

6515173

CAP

8

6515629

FUEL CAP

8

6512910

FUEL CAP Explosion Proof

9

6504938

CYLINDER See Illustration VARIABLE SPEED DRIVE SHEAVE/ B21198 VARIABLE SPEED

10

25E21

WASHER 5

11

4E8

WASHER

12

61D8

NUT 5

13

650297

CHANNEL

14

7C820

BOLT

15

GUARD NLA - variable speed - Was 6502583 - A

16

6554939

COVER

17

6505356

BAFFLE sprocket

18

40K4

PLUG 1/4'' (6,35mm)

19

40K12

PLUG 3/4'' (19,05mm)

20

40K2

PLUG 1/8'' (3,175mm)

21

SEAT BELT NLA - Order 6675074 seat belt & (2) of 6725373 spring plate - Was 6563214 - A

22

4E6

WASHER

23

6502459

SAFETY TREAD

24

6547556

GUARD

25

17C612

BOLT 5

26

6515275

NUTSERT

27

17C632

BOLT 5

28

6502694

GASKET

29

PANEL NLA - instrument - RH - Was 6502693 - A

30

PANEL NLA - Was 6503074 - A

31

SCREW NLA - Order 17C000552B & 25E000015B - Was 6505059 - A

32

6515627

ADAPTER

33

6502400

HOOK

34

6541218

MOUNT

Выбрано товаров: 35
