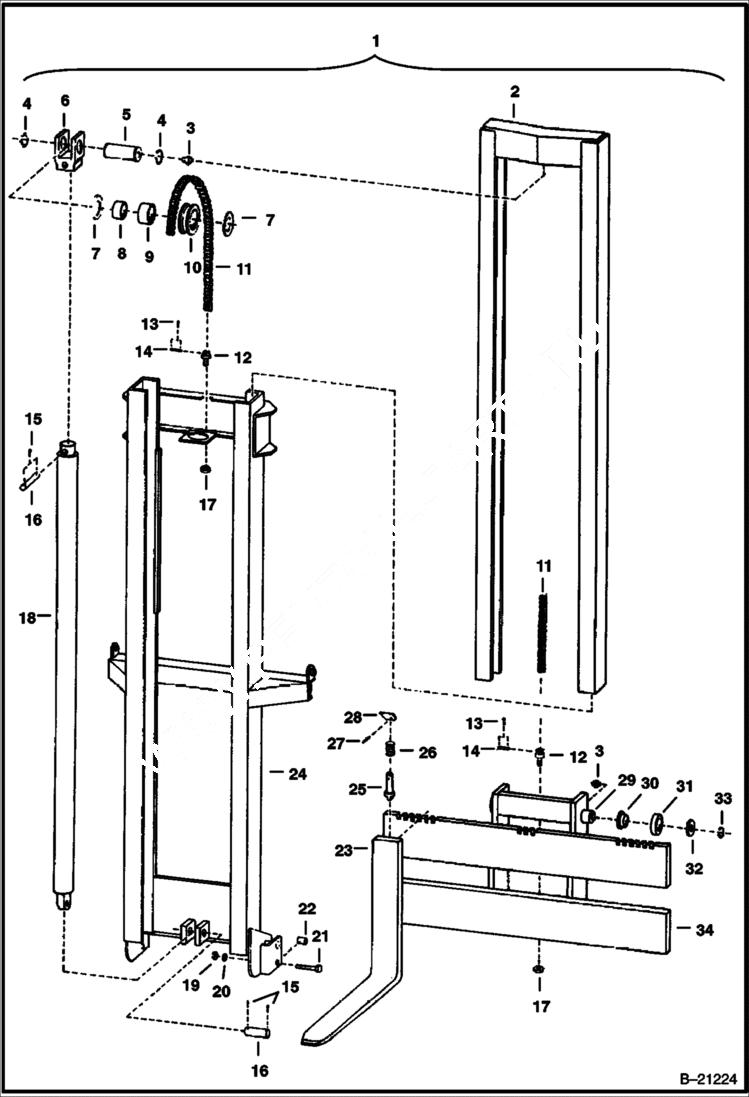

Запчасти Bobcat 500s VERTICAL MAST - M500 ACCESSORIES & OPTIONS

1

6508775

MAST 10' (3048mm) lift - Ref. 2, 24 & 29 - 34

1

6508821

MAST 12' (3657,6mm) lift - Ref. 2, 24 & 29 - 34

2

6515317

CHANNEL inner - 10' (3048mm) lift

2

6515318

CHANNEL inner - 12' (3657,6mm) lift

3

6518200

FITTNG, GREASE 10

4

6515349

RETAINER

5

PIN NLA - chain roller - Was 6515345 - A

6

6515326

HEAD cylinder rod

7

6515348

WASHER thrust

8

6515350

RACE chain roller bearing

9

6515346

BEARING chain roller

10

6515347

ROLLER chain

11

6515342

CHAIN leaf P - 87 pitches

11

6515343

CHAIN leaf P - 99 pitches

12

6515339

ANCHOR chain

13

1F316

PIN

14

6515340

PIN chain connector

15

1F416

PIN Was 1F000412B - D

16

6515356

PIN cylinder attachment

17

6515344

NUT chain anchor

18

6515321

CYLINDER See Illustration LIFT CYLINDER/ B1049 10' LIFT

18

6515322

CYLINDER See Illustration LIFT CYLINDER/ B1049 12' LIFT

19

61D8

NUT 5

20

4E8

WASHER

21

17C848

BOLT

22

BUSHING NLA - Was 6506678 - A

23

FORK NLA - 30'' (762 mm) - W/Ref. 25-28

23

FORK NLA - 36'' (914,4 mm) - W/Ref. 25-28

23

FORK NLA - 42'' (1066,8 mm) - W/Ref. 25-28

23

FORK NLA - 48'' (1219,2 mm) - W/Ref. 25-28

24

6515319

CHANNEL outer 10' (3048mm) lift

24

6515320

CHANNEL outer 12' (3657,6mm) lift

25

6517884

PIN

26

6517882

SPRING

27

666888

PIN

28

6517883

LEVER

29

POST NSS - Was 6508742 - A

30

6515354

BUSHING

31

6515353

ROLLER

32

6515351

PAD

33

6515352

RETAINER

34

6515338

CARRIAGE 42'' (1066,8mm) wide
