Запчасти Bobcat 500s MAIN FRAME ATTACHING PARTS Right Side MAIN FRAME

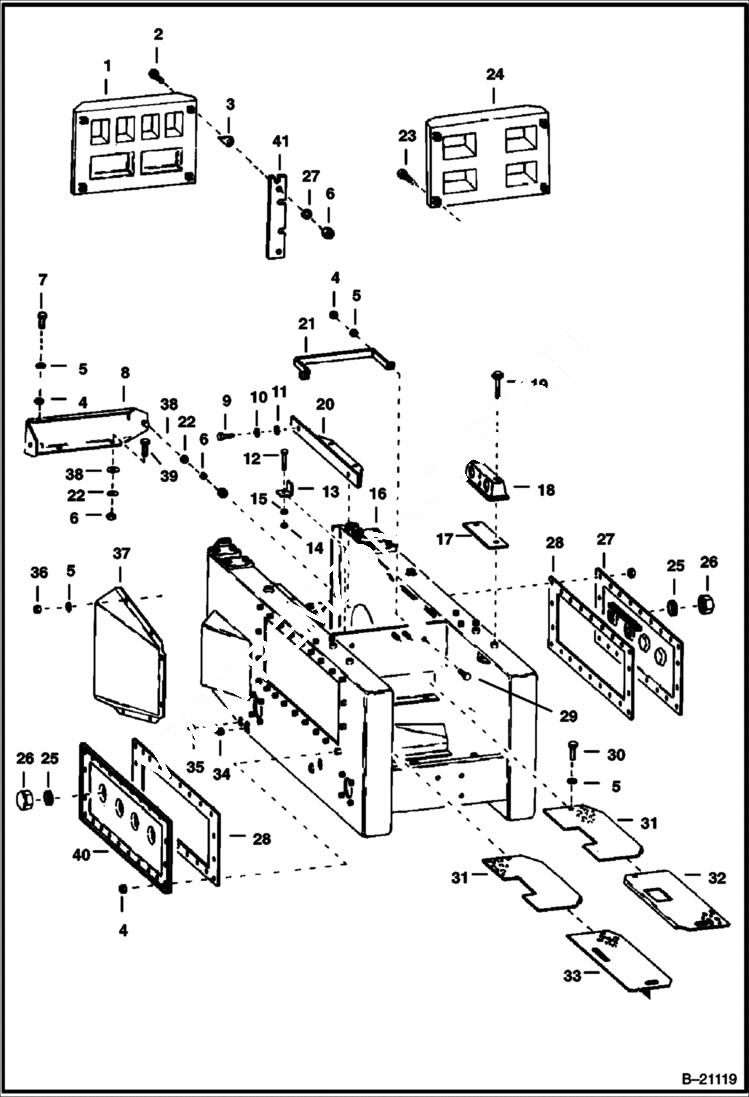

Схема запчастей Bobcat 500s - MAIN FRAME ATTACHING PARTS Right Side MAIN FRAME

Артикул

Название

Примечание

Количество

1

GRILL NLA - 100 lbs. - Was 6503120 - A

2

17C840

BOLT

3

CLIP NLA - Was 6502688 - A

4

61D6

NUT 5

5

25E17

WASHER 5

6

61D8

NUT 5

7

17C612

BOLT 5

8

6504823

CHANNEL

9

17C412

BOLT 5

10

4E4

WASHER

11

25E13

WASHER 5

12

17C516

BOLT

13

6547917

STOP battery

14

61D5

NUT

15

4E5

WASHER

16

CHANNEL NLA - upright - Was 6502297 - A

17

6502694

GASKET

18

PANEL NLA - instrument - LH - Gasoline - Was 6503075 - A

18

PANEL NLA - instrument - LH - Diesel - Was 6503430 - A

19

SCREW NLA - Order 17C000552B & 25E000015B - Was 6505059 - A

20

6503123

PLATE heat deflector

21

6505893

BRACKET

22

4E8

WASHER

23

17C832

BOLT

24

GRILL NLA

25

6515195

SEAL

26

6502539

CAP

27

COVER NLA - LH - Was 6504621 - A

28

6502337

GASKET

29

17C620

BOLT

30

17C612

BOLT 5

31

PANEL NLA - floor - W/Two Pedal - Was 6505345 - A

32

PANEL NLA - floor - LH - Was 6502983 - A

33

PANEL NLA - floor - RH - Was 6502923 - A

34

40K12

PLUG

35

40K4

PLUG

36

81D6

NUT

37

SHIELD NLA - air intake - Was 6504738 - A

37

SHIELD NLA - air intake - Was 6504789 - A

38

672568

WASHER

39

17C820

BOLT

40

COVER NLA - RH - Was 6504622 - A

41

PLATE NLA - Was 6505739 - A

Выбрано товаров: 43
