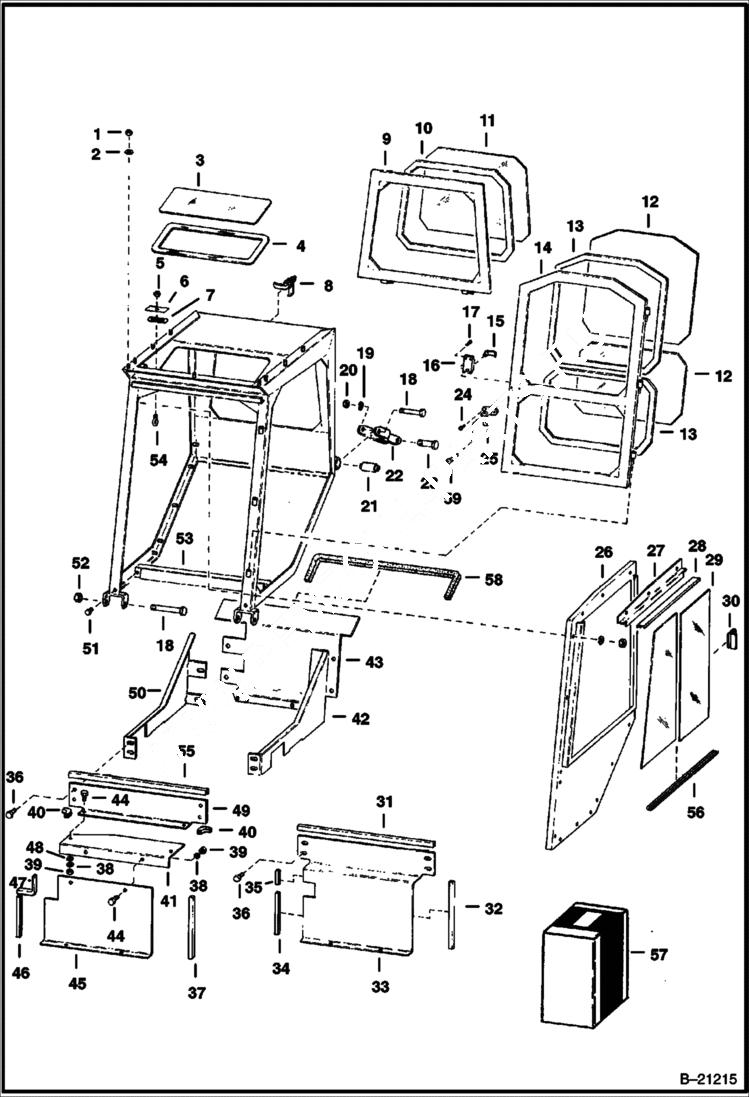

Запчасти Bobcat 500s CAB ENCLOSURE ACCESSORIES & OPTIONS

1

59D6

NUT

2

25E18

WASHER

3

WINDOW NLA - glass

4

SEAL NLA - locking

5

81D4

NUT

6

PLATE NSS

7

STRIP NSS - weather

8

LATCH NLA - window - Was 6519179 - A

9

6541451

FRAME

10

SEAL NLA - locking

11

WINDOW NLA - glass

12

WINDOW NLA - glass

13

SEAL NLA - locking

14

6540685

FRAME

15

6515600

HANDLE

16

6598475

DOOR LATCH

17

SCREW NLA - Was 59G1208 - A

18

17C1072

BOLT

19

4E10

WASHER

20

61D10

NUT

21

6519138

BUSHING

22

6540701

BRACKET

23

17C1048

BOLT

24

75G1008

SCREW machine

25

1550695

HANDLE W/Key

26

6541462

WINDOW ASSY. R.H.

26

6541469

WINDOW ASSY. L.H.

27

6547558

BRACKET R.H.

27

6547559

BRACKET L.H.

28

CHANNEL NLA - top - Order 3 of 6632565 - Was 6541505 - A

29

WINDOW NLA

30

6519421

HANDLE window

31

SEAL NLA - Order Ref. 57

32

SEAL NLA - Order Ref. 57

33

6542249

PANEL front one piece

34

SEAL NLA - Order Ref. 57

35

SEAL NLA - Order Ref. 57

36

17C408

BOLT

37

SEAL NLA - Order Ref. 57

38

4E6

WASHER

39

61D6

NUT 5

40

SEAL NLA - Order Ref. 57

41

PANEL NLA - Upper - Was 6547193 - A

42

6542285

PANEL side

43

6542223

PANEL back

44

17C614

BOLT

45

6547192

PANEL lower

46

SEAL NLA - Order Ref. 57

47

SEAL NLA - Order Ref. 57

48

25E17

WASHER 5 flat

49

6547556

GUARD foot

50

6542284

PANEL R.H.

51

17C608

BOLT

52

81D10

NUT Was 6518109 - A

53

6542259

BRACE door

53

6542731

SAFETY TREAD

54

6544495

RING weather strip

55

SEAL NLA - Weather - Was 6544497 - A

56

6541506

CHANNEL bottom - Order 38.6'' (980,44mm) of 6632565

57

6519177

SEAL bulk

58

6542651

SEAL

59

6665409

KEY
