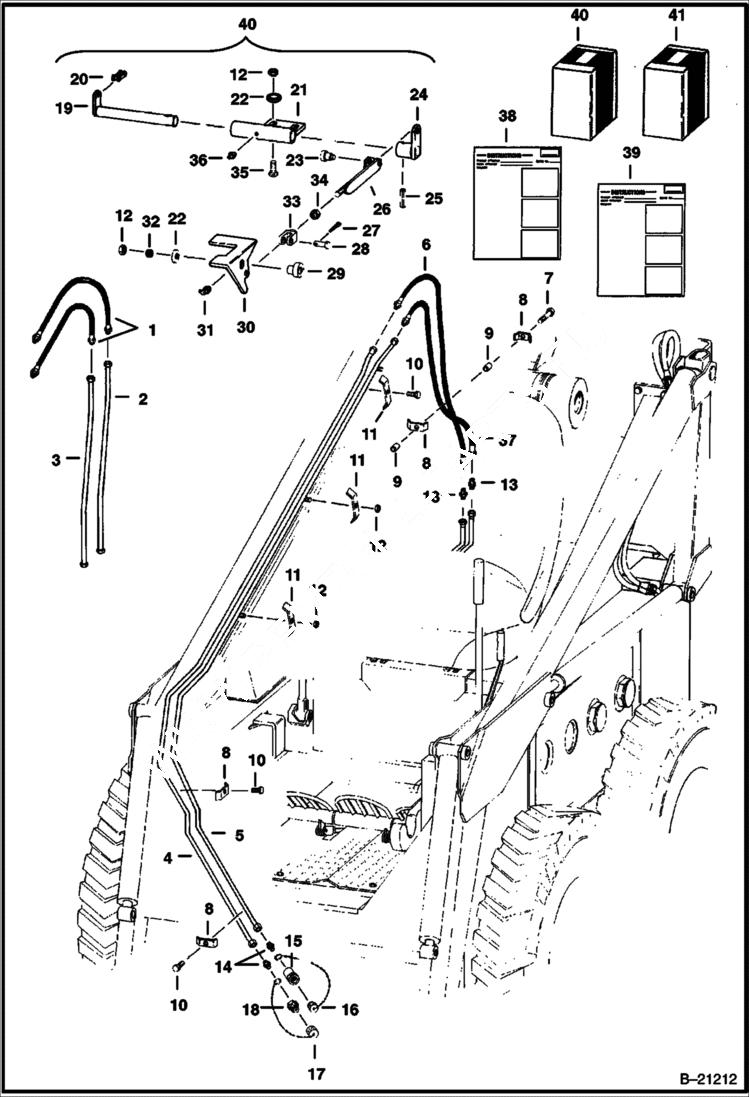

Запчасти Bobcat 500s AUXILIARY HYDRAULIC SYSTEM Boom Mounted - One Unit Control ACCESSORIES & OPTIONS

1

HOSE NLA - Order 6501053 & 87F000006B

2

6501097

TUBE M-444 & M-500 Gas & LP

3

TUBE NLA - M-444 & M-500 Gas LP - Was 6501098 - A

4

6547482

TUBE

5

6547483

TUBE

6

6501297

HOSE M-500 Diesel

7

17C640

BOLT 5

8

6502203

CLAMP

9

661877

SPACER

10

17C616

BOLT 5

11

6502773

CLAMP

12

81D6

NUT

13

87F6

FITTING straight

14

656598

ADAPTER straight

15

6598756

QUICK COUPLER Female

16

6515167

PLUG coupler

17

6515168

CAP coupler

18

6598755

QUICK COUPLER Male

19

ROD NLA - pivot - Was 6504613 - A

20

6515186

CONNECTOR connector

21

SLEEVE NLA - Was 6504614 - A

22

4E6

WASHER

23

6502340

SCREW shoulder

24

ARM NLA - Was 6504612 - A

25

668312

PIN ROLL

26

BAR NLA - Was 6504610 - A

27

COTTER PIN NLA - Was 1F000310B - A

28

663350

PIN hinge

29

BUSHING NLA - Was 6502392

30

6504611

PEDAL NLA - Was 6504611 - A

31

11H25

FITTING10

32

25E17

WASHER 5 Was 103293 - A

33

6508041

YOKE

34

8D6

NUT 5

35

BOLT NLA - carriage bolt - 3/8'' x 1'' - grade 2 - Was 7C000616B - A

36

10H35

FITTING, GREASE 10

37

6555658

HOSE M-500 Diesel

38

6545966

INSTRUCTIONS 6548672 Kit

39

6545973

INSTRUCTIONS 6548690 Kit

40

KIT NLA - aux. pedal - Order components of 6548672

41

KIT NLA - aux. hyd. boom mounted, M-444, M-500 Gas & LP - Order components of 6540789

41

6548690

KIT aux. hyd. boom mounted, M-500 Diesel
