Запчасти Bobcat 500s AUXILIARY HYDRAULIC CONTROL KIT Frame Mounted - One Unit Control ACCESSORIES & OPTIONS

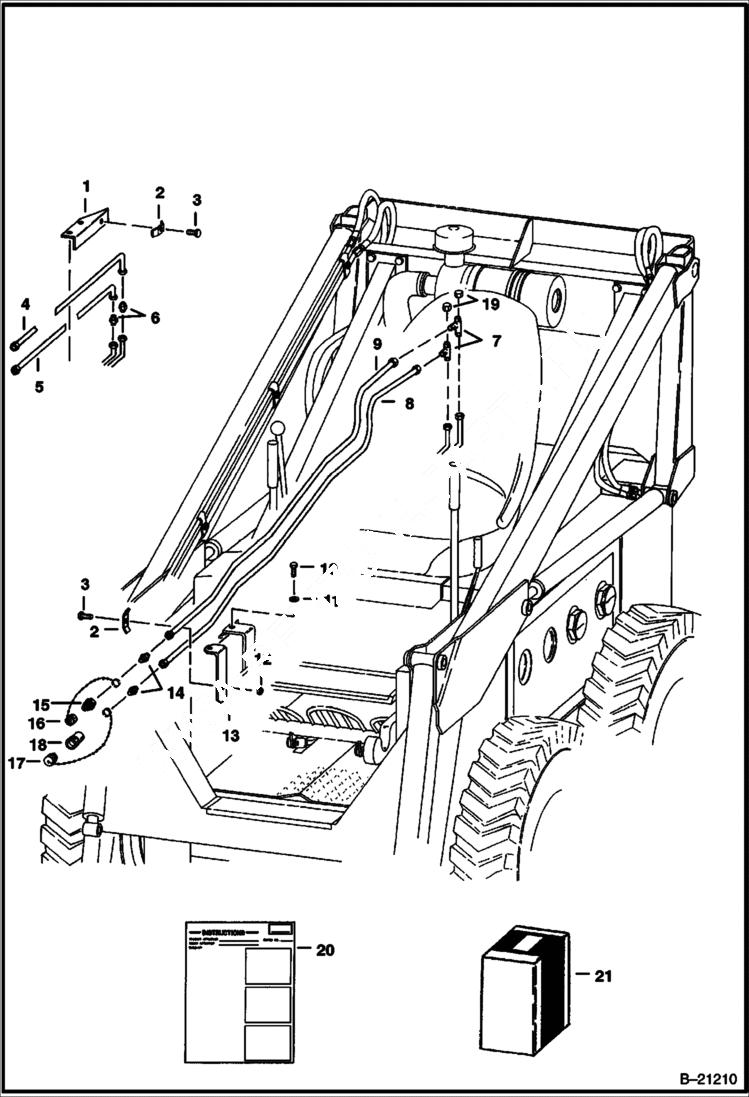

Схема запчастей Bobcat 500s - AUXILIARY HYDRAULIC CONTROL KIT Frame Mounted - One Unit Control ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

6502427

BRACKET

2

6502203

CLAMP

3

17C620

BOLT

4

TUBE NLA - M-444, M-500 Gas & LP - Was 6501070 - A

5

TUBE NLA - M-444, M-500 Gas & LP - Was 6501071 - A

6

87F6

FITTING

7

10K6

FITTING

8

6501294

TUBE M-500 Diesel

9

TUBE NLA - M-500 Diesel - Was 6501293 - A

10

17C516

BOLT

11

25E17

WASHER 5

12

81D6

NUT

13

6546096

BRACKET

14

656598

ADAPTER

15

6598755

QUICK COUPLER

16

6515167

PLUG female

17

6515168

CAP male

18

6598756

QUICK COUPLER

19

36K6

CAP

20

6545972

INSTRUCTIONS 6548688 Kit

21

KIT NLA - M-500 Diesel - Order components of 6548688

21

KIT NLA - M-444 & M-500 Gas & LP - Order components of 6540792

Выбрано товаров: 22
