Запчасти Bobcat 500s THROTTLE CONTROL AND LINKAGE M-500 Diesel S/N 4525 & Above POWER UNIT

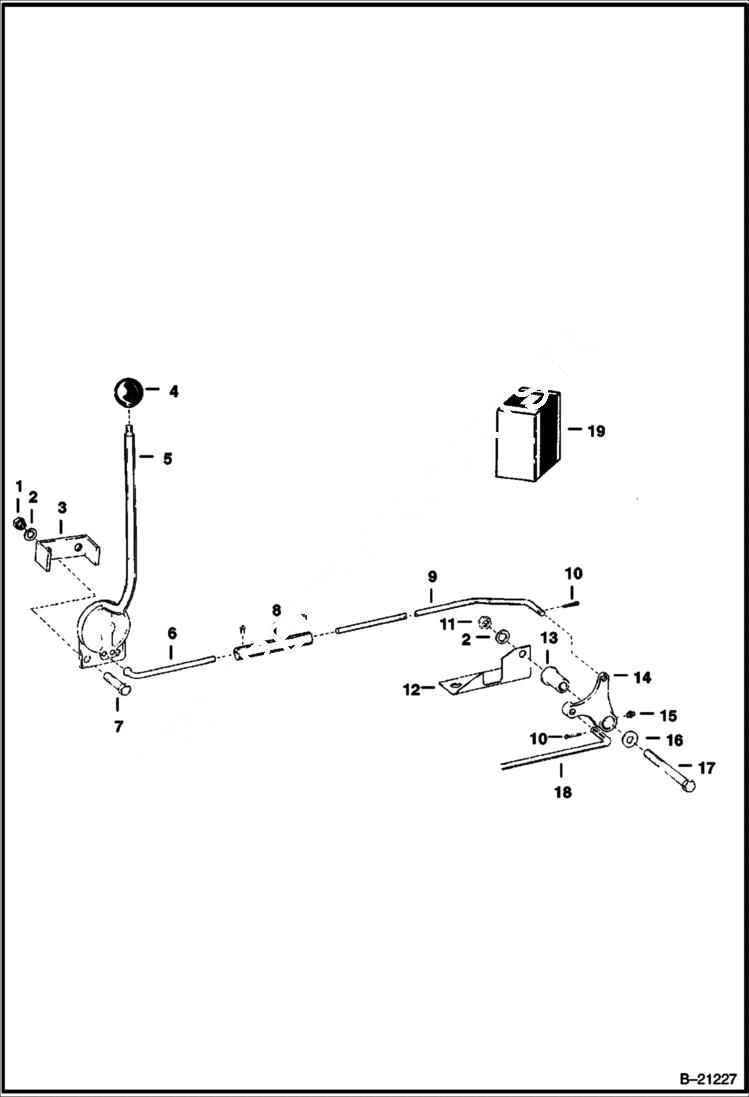

Схема запчастей Bobcat 500s - THROTTLE CONTROL AND LINKAGE M-500 Diesel S/N 4525 & Above POWER UNIT

Артикул

Название

Примечание

Количество

1

61D6

NUT 5

2

4E6

WASHER

3

STOP NLA - Was 6502611 - A

4

6515888

KNOB

5

CONTROL NLA - Use Ref. 19

6

6508176

ROD front

7

17C640

BOLT 5

8

CONNECTOR NLA - Was 6508172 - A

9

6508173

ROD top rear

10

1F416

PIN

11

81D6

NUT

12

6508174

BRACKET

13

6515202

BUSHING

14

6502596

BELLCRANK

15

10H35

FITTING, GREASE 10

16

25E17

WASHER 5

17

17C652

BOLT

18

ROD NLA - Was 6508161 - A

19

CONTROL NLA -Throttle - Was 6561436 - A

Выбрано товаров: 19
